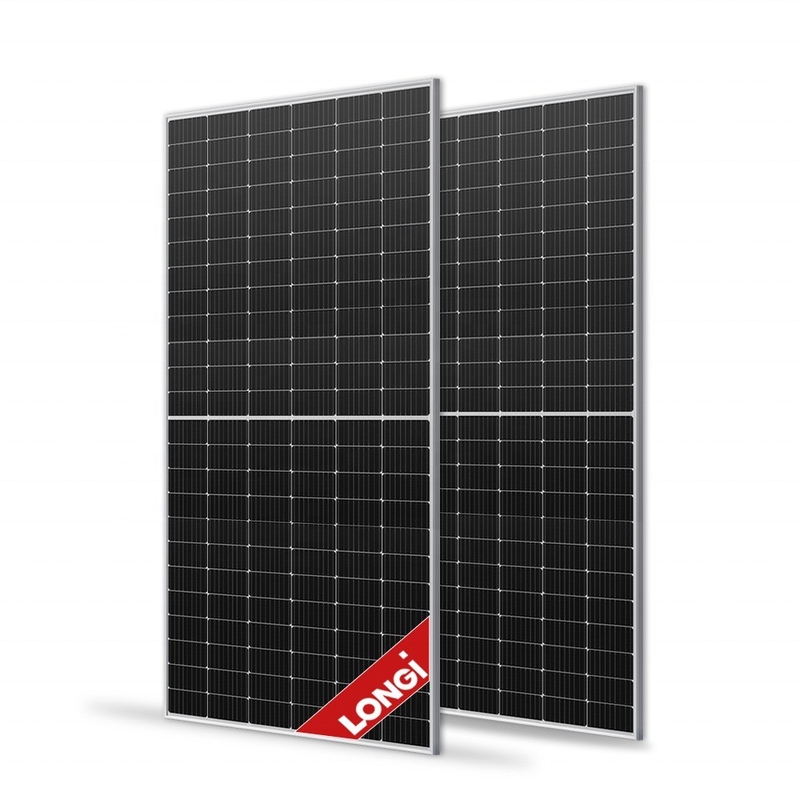

Longi HiMO 6 Solar Power PV Modules 440W 420W 585W 595W 605W 620W
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Longi |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 watts |
|---|---|
| Price: | $0.20/watts 20000-299999 watts |
|
Detail Information |
|||
| Cell Size: | 182mmx182mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV |
|---|---|---|---|
| Panel Dimensions: | 2278*1134*35mm | Panel Efficiency: | 22% |
| Warranty: | 25 Years | Solar Cell: | 182*182mm, Grade A |
| Application: | Solar Power System | Junction Box: | IP68 Rated |
| Frame: | Anodized Aluminium Alloy | Product Name: | Solar Panels |
| Key Word: | PV Modules | Glass: | 3.2mm Tempered Low Iron |
| Connector: | MC4 Compatible Connector | Cable: | 4.0mm² |
| Certificate: | CE, TUV, IEC, Inmetro, ISO | ||
Product Description
Solar Panel Description
Mechanical Data
|
Hi-MO 5m
LR5-72HPH540~560M
|
|
|
|
|
|
|||||
|
Maximum Power(Pmax/W)
|
540
|
545
|
550
|
555
|
560
|
|||||
|
Voltage at Maximum Power(Vmp/V)
|
41.65
|
41.80
|
41.95
|
42.10
|
42.25
|
|||||
|
Current at Maximum Power(Imp/A)
|
12.97
|
13.04
|
11.04
|
13.19
|
13.26
|
|||||
|
Open Circuit Voltage(Voc/V)
|
49.50
|
49.65
|
49.80
|
49.95
|
50.10
|
|||||
|
Short Circuit Current(lsc/A)
|
13.85
|
13.92
|
13.98
|
14.04
|
14.10
|
|||||
|
Module Efficiency(%)
|
20.9
|
21.1
|
21.3
|
21.5
|
21.7
|
|||||
|
Hi-MO 6
LR5-72HTH565~600M
|
|
|
|
|
|
|
|
|
||||||||
|
Maximum Power(Pmax/W)
|
565
|
570
|
575
|
580
|
585
|
590
|
595
|
600
|
||||||||
|
Voltage at Maximum Power(Vmp/V)
|
43.61
|
43.76
|
43.91
|
44.06
|
44.21
|
44.36
|
44.51
|
44.66
|
||||||||
|
Current at Maximum Power(Imp/A)
|
12.96
|
13.03
|
13.10
|
13.17
|
13.24
|
13.31
|
13.37
|
13.44
|
||||||||
|
Open Circuit Voltage(Voc/V)
|
51.76
|
51.91
|
52.06
|
52.21
|
52.36
|
52.51
|
52.66
|
52.81
|
||||||||
|
Short Circuit Current(lsc/A)
|
14.01
|
14.07
|
14.14
|
14.20
|
14.27
|
14.33
|
14.40
|
14.46
|
||||||||
|
Module Efficiency(%)
|
21.9
|
22.1
|
22.3
|
22.5
|
22.6
|
22.8
|
23.0
|
23.2
|
||||||||
|
Hi-MO 7
LR5-72HGD 560~590M
|
|
|
|
|
|
|
|
|||||||
|
Maximum Power(Pmax/W)
|
560
|
565
|
570
|
575
|
580
|
585
|
590
|
|||||||
|
Voltage at Maximum Power(Vmp/V)
|
42.82
|
42.91
|
43.00
|
43.11
|
43.22
|
43.33
|
43.44
|
|||||||
|
Current at Maximum Power(Imp/A)
|
13.08
|
13.17
|
13.26
|
13.34
|
13.42
|
13.51
|
13.59
|
|||||||
|
Open Circuit Voltage(Voc/V)
|
50.99
|
51.09
|
51.19
|
51.30
|
51.41
|
51.52
|
51.63
|
|||||||
|
Short Circuit Current(lsc/A)
|
13.89
|
13.97
|
14.05
|
14.14
|
14.22
|
14.30
|
14.38
|
|||||||
|
Module Efficiency(%)
|
21.7
|
21.9
|
22.1
|
22.3
|
22.5
|
22.6
|
22.8
|
|||||||
Hi-MO 5m
LR5-72HPH540~560M
Power Range: 540-560W
No. of Cells: 144 cells
Dimension: 2278x1134x35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278x1134x35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 6
LR5-72HTH565~585M
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 6
LR5-72HTH590~600M
Power Range: 590-600W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 7
LR5-72HGD 560~590M
Power Range: 560-590W
No. of Cells: 144 cells
Dimension: 2278×1134×30 mm
Weight:31.8 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimension: 2278×1134×30 mm
Weight:31.8 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Why Choose Us
we have cooperated with Tier 1 solar panels, many well-known solar inverters brands. And we can supply large solar energy series products, comprehensive solar-tech support.
Tier 1 Solar
Project
A: What are your main products?
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
If you want to know more information, you can send inquiry to our team, we will cover more details.
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
Sample will charge cost, but the cost will be refund after bulk order.
If you want to know more information, you can send inquiry to our team, we will cover more details.
Want to Know more details about this product
