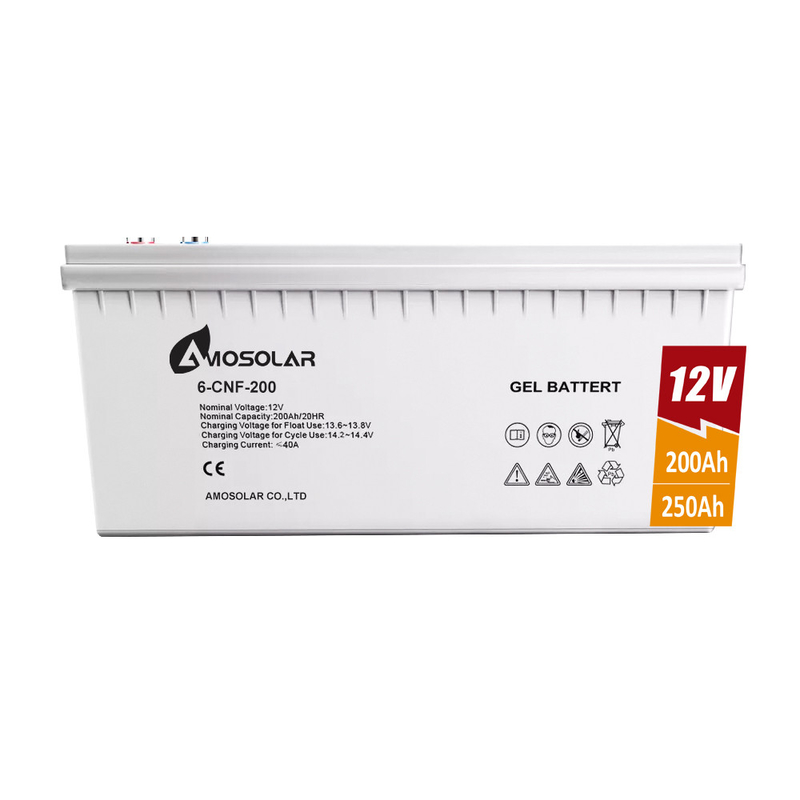

Sealed Gel Battery 2v 12v 200ah 100ah 150ah for Deep Cycle Solar Storage Power System
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | 12v100ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $90.00/pieces 5-99 pieces |
| Packaging Details: | Cartons and pallets and wooden box |
| Supply Ability: | 100000 Piece/Pieces per Year |
|
Detail Information |
|||
| Warranty: | 3years, 3 Years | Chargeable: | Yes |
|---|---|---|---|
| Application: | Power Tools, Home Appliances, Consumer Electronics, Golf Carts, BOATS, SUBMARINES, Automotive, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Car, Elec | Battery Type: | Deep Cycle: Sealed Gel, Lead-Acid |
| Cycle Life: | 3000 | Storage Type: | Room Temperature Storage |
| The Charging Ratio: | 1c | The Discharge Rate: | 1c |
| Product Name: | Lead-acid Maintenance-free Battery | Capacity: | 12V100AH |
| OEM/ODM: | Yes(Accepted) | Cycle Life: | 1500times |
| Voltage: | 12V/24V/36V/48V | Type: | GEL Lead Acid Battery |
| Size: | 330*173*212mm | ||
Product Description
Product Description
Mechanical Data
Model | 6-GFM(G)-100Ah | 6-GFM(G)-150Ah | 6-GFM(G)-200Ah | 6-GFM(G)-250Ah | |||
Cells Per Unit | 6 | ||||||
Voltage Per Unit | 12V | ||||||
Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C | |||
Weight | 29kg | 42kg | 58.5kg | 67kg | |||
Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ | |||
Terminal | F1/F2 | ||||||
Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) | |||
Design Life | 10~15 years | ||||||
Maximum Charging Current | 25A | 37.5A | 50A | 62.5A | |||
Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell | ||||||
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Cycle Use Voltage Temperature Compensation: -30mV/°C/Cell | ||||||
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | ||||||
Normal Operating Temperature Range | 25°C±5°C | ||||||
Self Discharge | Less than 3% at 25°C per month | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional | ||||||

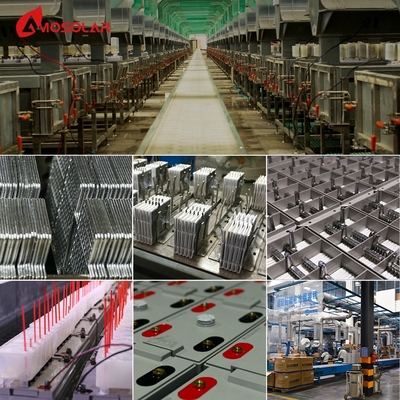

Auto Production Line

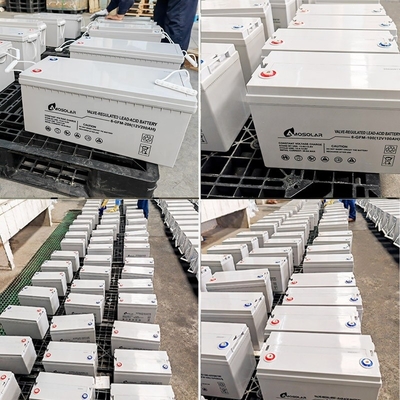

Our Factory
Packaging & Delivery
Want to Know more details about this product
