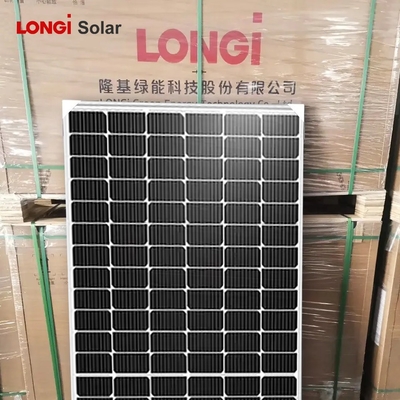

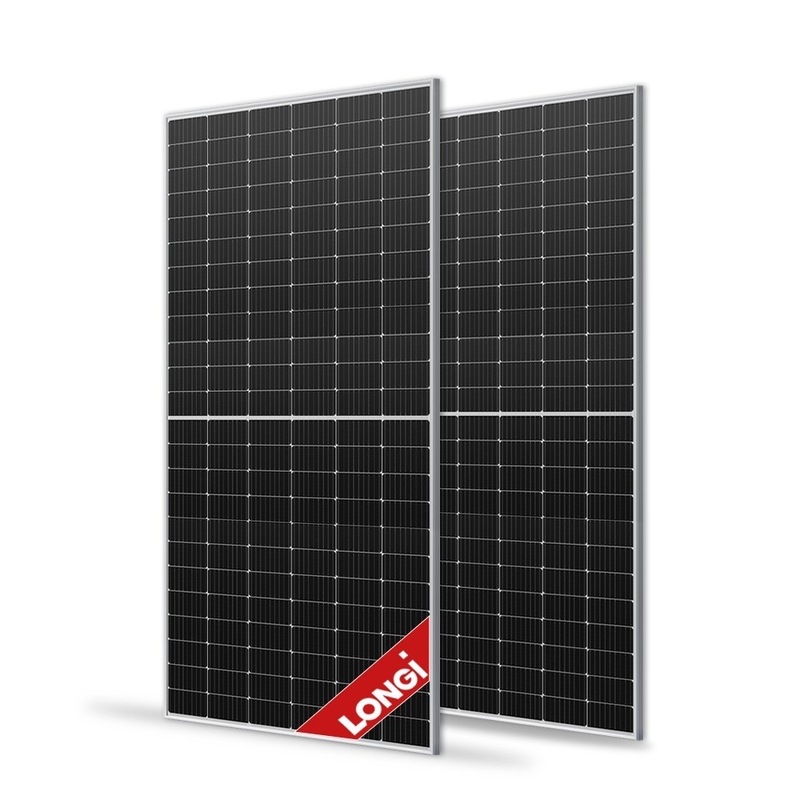

Longi 450W 540W Tempered Low Iron Glass Solar Panel with Anodized Aluminium Alloy Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Longi |

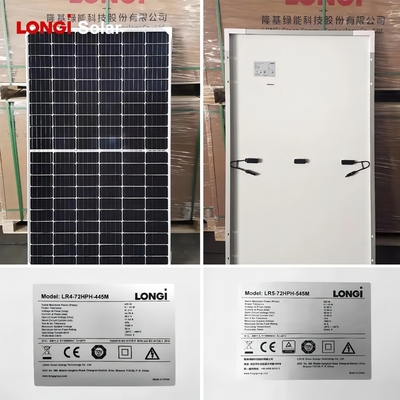

| Model Number: | LR5-72HPH 540~560M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 watts |
|---|---|
| Price: | $0.15/watts 100-99999 watts |
|
Detail Information |
|||
| Cell Size: | 182mmx182mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV |
|---|---|---|---|
| Panel Dimensions: | 2278*1134*35mm | Panel Efficiency: | 21.7% |
| Warranty: | 25 Years | Solar Cell: | 182*182mm, Grade A |
| Application: | Solar Power System | Junction Box: | IP68 Rated |
| Frame: | Anodized Aluminium Alloy | Product Name: | Solar Panels |
| Key Word: | PV Modules | Glass: | 3.2mm Tempered Low Iron |
| Connector: | MC4 Compatible Connector | OEM Order: | Acceptable |
| Certificate: | CE, TUV, IEC, Inmetro, ISO | ||
Product Description
Solar Panel Description
Mechanical Data
ELECTRICAL PARAMETERS | ||||||||||
Rated Maximum Power at STC | 535W | 540W | 545W | 550W | 555W | |||||
Open Circuit Voltage (Voc) | 49.35 | 49.50 | 49.65 | 49.80 | 49.95 | |||||
Maximum Power Voltage (Vmp) | 41.50 | 41.65 | 41.80 | 41.95 | 42.10 | |||||
Short Circuit Current (Isc) | 13.78 | 13.85 | 13.92 | 13.98 | 14.04 | |||||
Maximum Power Current (Imp) | 12.90 | 12.97 | 13.04 | 13.12 | 13.19 | |||||
PV Module Efficiency (%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 | |||||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
*Measuring Tolerance: ±3%.
Layout | 144( 6 × 24） | ||||||
Junction Box | Split junction box, IP68, 3 diodes | ||||||
Weight | 27.2KG | ||||||
Cable Length | 300mm (+) / 300mm（-) | ||||||
Cable Size | 4mm²（IEC) | ||||||
PV Size | 2256×1133×35mm | ||||||
Packaging | 31 pcs / pallet 155pcs/20GP container, 620 pcs / 40HQ container | ||||||
Tier 1 Solar
Why Choose Us
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

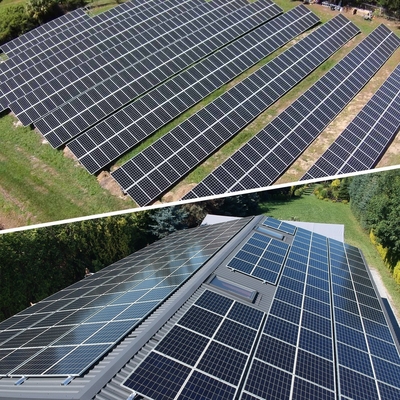

Project
OEM Service
FAQ
1: What kind of Solar Cells we have?
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Poly solar cell 156.75*156.75mm.
2: What is the lead time?
Normally 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
2: What is the lead time?
Normally 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
8.What's the delivery & payment term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Want to Know more details about this product
