Amosolar Solar Panel 400w 450w 440 445 450 455 460 W Wp Watt Half Cell 144 Monocrystalline TUV Listed
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | AS445-465M6-144 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 watts |
|---|---|
| Price: | $0.11/watts 20000-99999 watts |
|
Detail Information |
|||
| Cell Size: | 166mmx166mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV, Flexible |
|---|---|---|---|
| Panel Dimensions: | 2038*1094*35MM | Panel Efficiency: | 21.39% |
| Warranty: | 25 Years Warranty | Solar Cell: | 166*166mm,Grade A |
| Application: | Solar Power System | Junction Box: | IP68 Rated |
| Frame: | Anodized Aluminium Alloy | Product Name: | Sola Panel |
| Glass: | 3.2mm Tempered Low Iron | OEM Order: | Acceptable |
| Connector: | MC4 Compatible Connector | Cable: | 4mm2 |
| Certificate: | CE/TUV/INMETRO/ISO | ||
Product Description
Solar Panel Description
ELECTRICAL PARAMETERS | ||||||||||||
Rated Maximum Power at STC | 440W | 445W | 450W | 455W | 460W | 465W | ||||||
Open Circuit Voltage (Voc) | 49.40 | 49.56 | 49.70 | 49.85 | 50.11 | 50.15 | ||||||
Maximum Power Voltage (Vmp) | 40.90 | 41.21 | 41.52 | 41.82 | 42.13 | 42.43 | ||||||
Short Circuit Current (Isc) | 11.28 | 11.32 | 11.36 | 11.41 | 11.45 | 11.49 | ||||||
Maximum Power Current (Imp) | 10.76 | 10.80 | 10.84 | 10.88 | 10.92 | 10.96 | ||||||
PV Module Efficiency (%) | 20.13 | 20.36 | 20.58 | 20.81 | 21.04 | 21.27 | ||||||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
*Measuring Tolerance: ±3%.
Layout | 144( 6 × 24 ） | ||||||
Junction Box | Split junction box, IP67, 3 diodes | ||||||
Weight | 23.0KG | ||||||
Cable Length | 300mm (+) / 300mm（-) | ||||||
Cable Size | 4mm²（IEC) | ||||||
PV Size | 2094×1038×35mm | ||||||
Packaging | 31 pcs / pallet 726 pcs / 40HQ container | ||||||

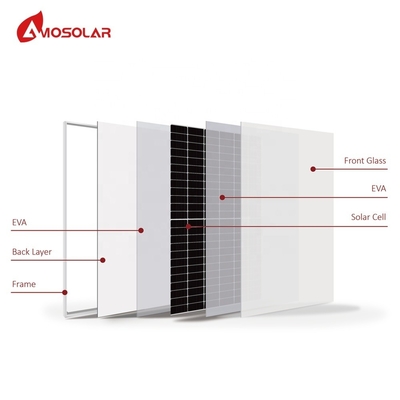

Raw Material
Amosolar use AKOME anodized aluminum alloy frame, FLAT/XINYI 3.2mm coated tempered glass, FIRST EVA film, Tongwei/Aiko solar cell, Cybrid/Taiflex PET/TPT backsheet to get a grade A solar panel. Besides, junction box is IP68 waterproof, output cables is 300mm in length, can be customized.
Certifications
Auto Production Line
SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Strict QC System
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Model | ASXXXM6-120 | ASXXXM6-144 |
Modules per pallet | 31 pieces | 31 pieces |
Modules per 40' HQ | 858 pieces | 726 pieces |
Project
OEM Service
FAQ
1: What kind of Solar Cells Amosolar have?
Mono solar cell, include 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Mono solar cell, include 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Poly solar cell 156.75*156.75mm.
2: What is the lead time?
Normally within 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
2: What is the lead time?
Normally within 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
8.What's the delivery & payment term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
