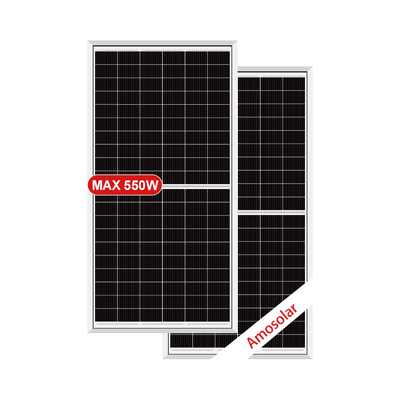

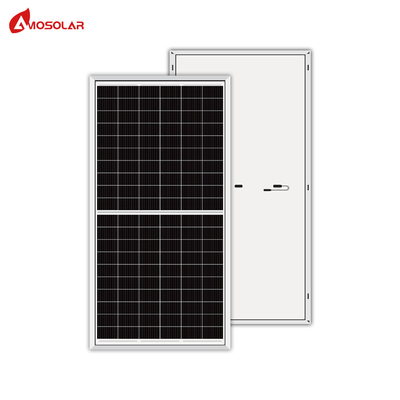

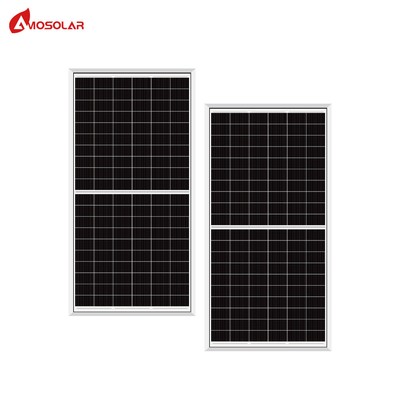

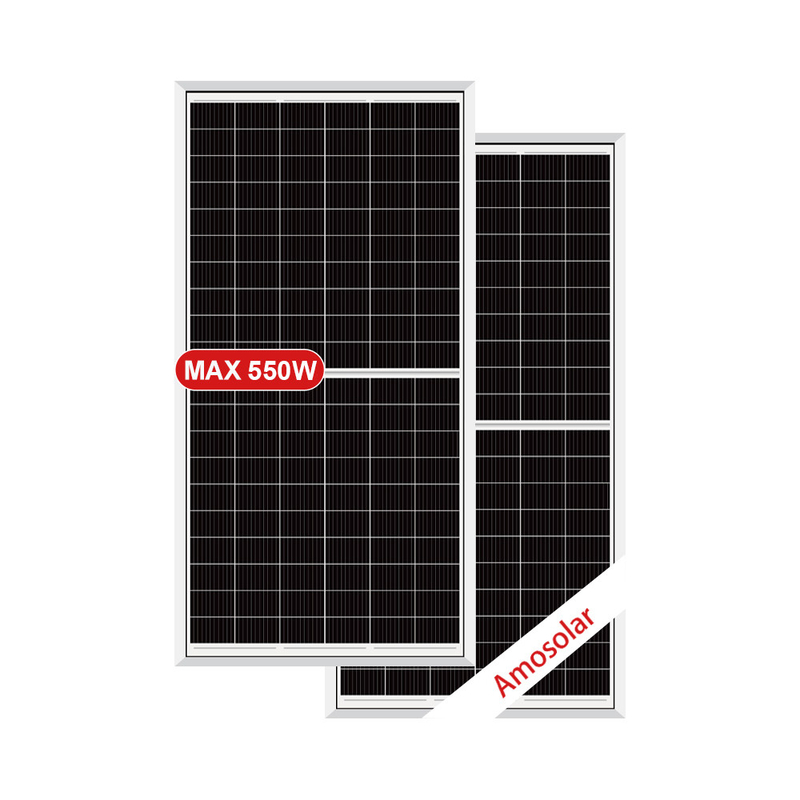

Amosolar Mono Solar Panels 525-550W The Ultimate Solution for Your Solar Applications
Product Details:
| Place of Origin: | Anhui, China |
| Model Number: | AS525-550M10-144 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 watts |
|---|---|
| Price: | $0.14/watts 1000-9999 watts |
|
Detail Information |
|||

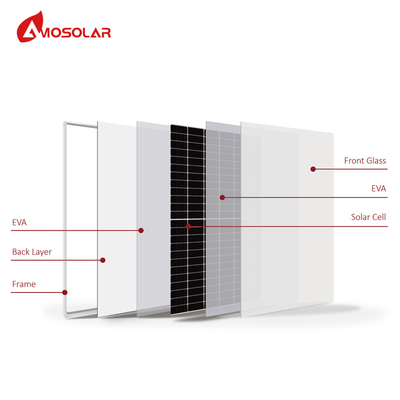

| Cell Size: | 182mmx182mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black |
|---|---|---|---|
| Panel Dimensions: | 2279*1134*35MM | Panel Efficiency: | 21.28% |
| Warranty: | 25 Years Warranty | Weight: | 28.6kg |
| Number Of Cells: | 144 (6 * 24) | ||
Product Description
Mechanical Data | ||||||||||||

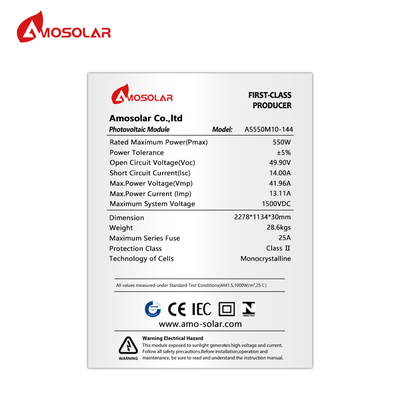

ELECTRICAL PARAMETERS | ||||||||||||
Rated Maximum Power at STC | 525W | 530W | 535W | 540W | 545W | 550W | ||||||
Open Circuit Voltage (Voc) | 49.15 | 49.30 | 49.45 | 49.60 | 49.75 | 49.90 | ||||||
Maximum Power Voltage (Vmp) | 41.15 | 41.31 | 41.47 | 41.64 | 41.80 | 41.96 | ||||||
Short Circuit Current (Isc) | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 | ||||||
Maximum Power Current (Imp) | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 | ||||||
PV Module Efficiency (%) | 20.31 | 20.51 | 20.70 | 20.89 | 21.09 | 21.28 | ||||||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5. *Measuring Tolerance: ±3%. | ||||||||||||
Layout | 144( 6 × 24 ） | |||||||||||
Junction Box | Split junction box, IP67, 3 diodes | |||||||||||
Weight | 28.6KG | |||||||||||
Cable Length | 300mm (+) / 300mm（-) | |||||||||||
Cable Size | 4mm²（IEC) | |||||||||||
PV Size | 2279×1134×35mm | |||||||||||
Packaging | 31 pcs / pallet 726 pcs / 40HQ container | |||||||||||
Product Description
Key Features:
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology：
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology：
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system
Rated Voltage | 12V |
Numbers of cells | 6 Cells |
Capacity | 9Ah@20hr-rate to 1.80V per cell @25°C |
Weight | 2.7kg |
Internal Resistance | Approx. 23mΩ |
Terminal | F1 / F2 |
Max. Discharge Current | 135A(5s) |
Short Circuit Current | 450A |
Max. Charging Current | 2.7A |
Reference Capacity | C20 9AH/C5 8.3AH/C1 5.89AH |
Design Life | 10~15 years |
Float Charging Voltage | 13.6 V~13.8 V @ 25°C, Temperature Compensation: -20mV/°C/Cell |
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C, Temperature Compensation: -30mV/°C/Cell |
Operating Temperature Range | Discharge: -15°C~50°C, Charge: 0°C~40°C, Storage: -15°C~40°C |
Normal Operating Temperature Range | 25°C±5°C |
Self Discharge | Less than 3% at 25°C per month |
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. |
Certifications
Want to Know more details about this product
