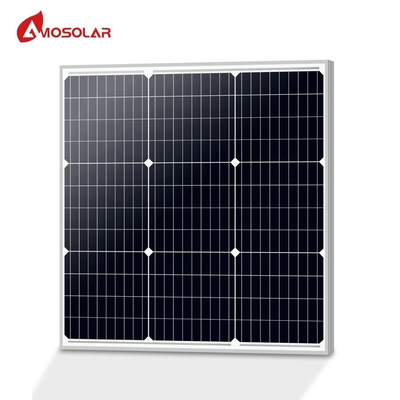

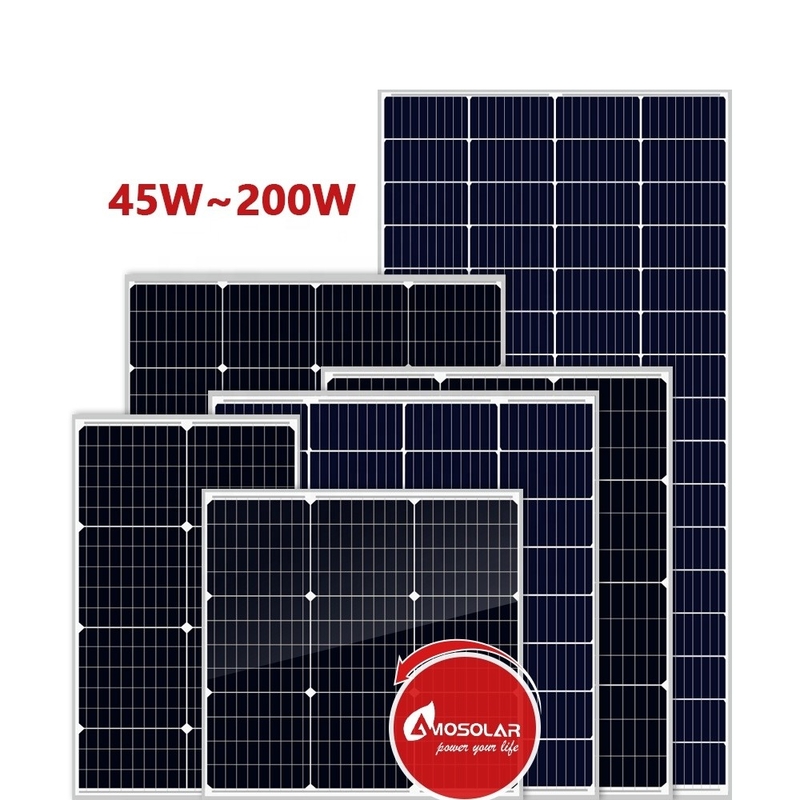

Directly Supplies Amosolar Mini Solar Panel 55w 100w 200w with PERC Technology
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | AS200M6-64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 watts |
|---|---|
| Price: | $0.16/watts 30000-99999 watts |
|
Detail Information |
|||
| Cell Size: | 166X83mm | Type: | PERC, Half Cell, Customized Solar Panel |
|---|---|---|---|
| Panel Dimensions: | 1405*700*30mm | Panel Efficiency: | 200W |
| Warranty: | 25 Years | Model: | AS200M6-64 |
| Rated Maximum Power At STC: | 200W | Open Circuit Voltage (Voc): | 21.98 |
| Maximum Power Voltage (Vmp): | 11.28 | Short Circuit Current (Isc): | 19.74 |
| Maximum Power Current (Imp): | 10.13 | PV Module Efficiency (%): | 19.01 |
| Junction Box: | Split Junction Box, IP67 | Cable Length: | 300mm (+) / 300mm(-) |
| Certificate: | CE | ||
Product Description
Product Description
Specification
Model | AS200M6-64 |
Rated Maximum Power at STC | 200W |
Open Circuit Voltage (Voc) | 21.98 |
Maximum Power Voltage (Vmp) | 11.28 |
Short Circuit Current (Isc) | 19.74 |
Maximum Power Current (Imp) | 10.13 |
PV Module Efficiency (%) | 19.01 |
Standard | Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5 |
Junction Box | Split junction box, IP67 |
Cable Length | 300mm (+) / 300mm(-) |
Layout | 64( 4 × 16 ） |
Weight | 11.67KG |
Cable Size | 4mm²（IEC) |
PV Size | 1405x700x30mm |
Packaging | 36 pcs / pallet |
Packing & Delivery
Cartons and pallets and wooden box
Strict QC System
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

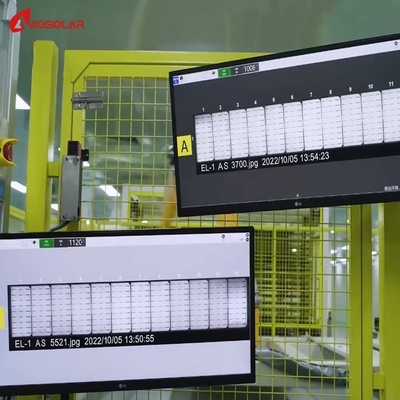

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.

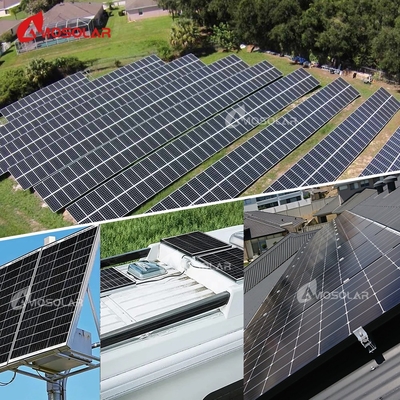

Project
Certifications
Company Profile
Amosolar was established in 2008. We are a professional solar panel manufacturer and a complete solar system product and service provider.Nationally recognized as a national high-tech enterprise, it specializes in the development and manufacture of photovoltaic modules, the construction and operation, maintenance and investment of photovoltaic power plants.High-efficiency solar panel and solar energy storage systems developed by Amosolar are at the forefront of the solar industry. We are determined to become a world-renowned supplier of PV modules and systems.Amosolar provides high-quality products and professional services to customers around the world with 2GW production capacity.
Want to Know more details about this product
