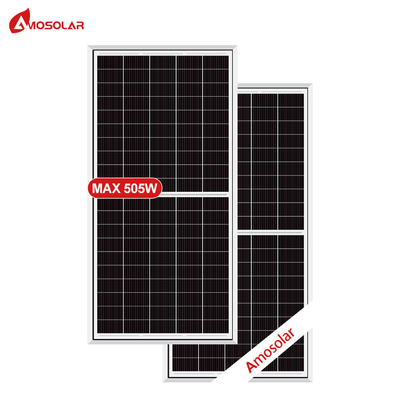

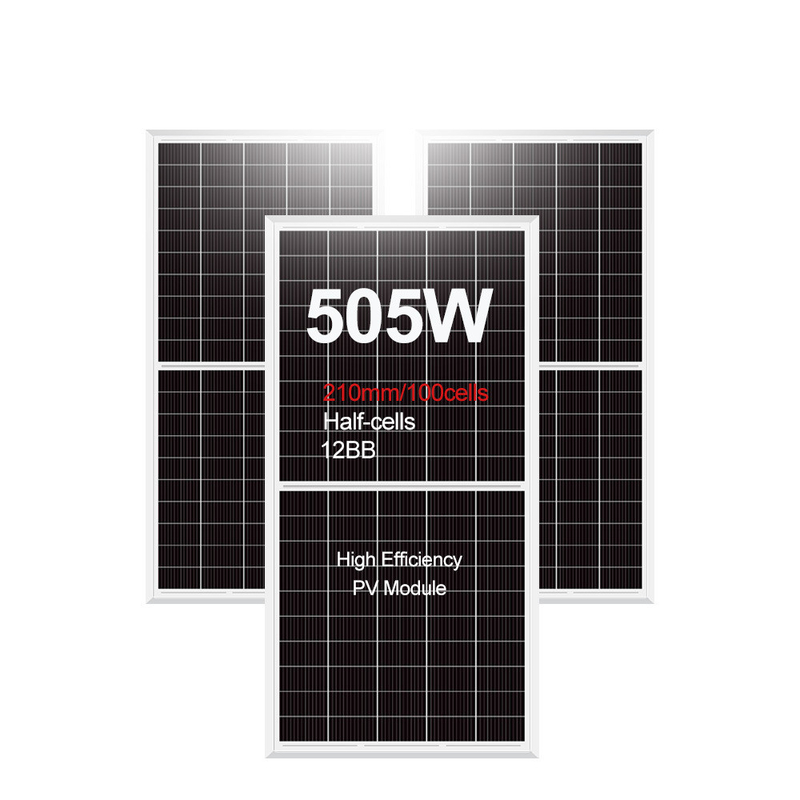

Upgrade Your PV Plant with 485w 490w 495w 500w 505w Solar Panel Kit from Certified
Product Details:
| Place of Origin: | Anhui, China |
| Model Number: | AS485-505G12-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 watts |
|---|---|
| Price: | $0.13/watts 1000-9999 watts |
|
Detail Information |
|||
| Cell Size: | 210mmx210mm | Type: | PERC, Half Cell, Bifacial, Double-glass |
|---|---|---|---|
| Panel Dimensions: | 2185*1098*35mm | Panel Efficiency: | 20.10% |
| Warranty: | 25 Years, 25 Years | Application: | Solar Power System |
| Product Name: | Solar PV Module | Cell Type: | Mono Solar Cell |
| Certificate: | CE, TUV, INMETRO, | Frame: | Anodized Aluminium Alloy |
| Junction Box: | IP68 Rated | Keyword: | PV Mudule |
| Number Of Cells: | 100 Cells | Weight: | 26.5KG |
Product Description
Mechanical Data | ELECTRICAL PARAMETERS | |||||||||
ELECTRICAL PARAMETERS | ||||||||||

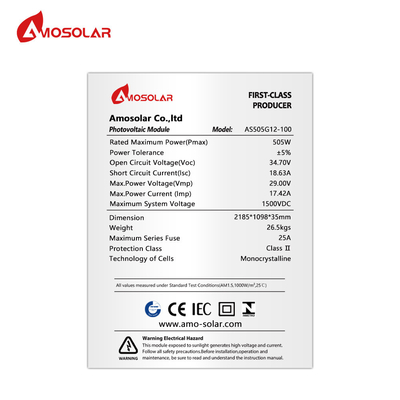

Rated Maximum Power at STC | 485W | 490W | 495W | 500W | 505W | |||||
Open Circuit Voltage (Voc) | 33.90 | 34.10 | 34.30 | 34.50 | 34.70 | |||||
Maximum Power Voltage (Vmp) | 28.20 | 28.40 | 28.60 | 28.80 | 29.00 | |||||
Short Circuit Current (Isc) | 18.31 | 18.39 | 18.47 | 18.55 | 18.63 | |||||
Maximum Power Current (Imp) | 17.19 | 17.25 | 17.31 | 17.36 | 17.42 | |||||
PV Module Efficiency (%) | 20.30 | 20.50 | 20.70 | 20.90 | 20.10 | |||||
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5. *Measuring Tolerance: ±3%. | STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5. *Measuring Tolerance: ±3%. | |||||||||
Layout | 100(5 × 20 ） | |||||||||
Junction Box | Split junction box, IP67, 3 diodes | |||||||||
Weight | 26.5KG | |||||||||
Cable Length | 300mm (+) / 300mm（-) | |||||||||
Cable Size | 4mm²（IEC) | |||||||||
PV Size | 2185×1098×35mm | |||||||||
Packaging | 31 pcs / pallet 620 pcs / 40HQ container | |||||||||

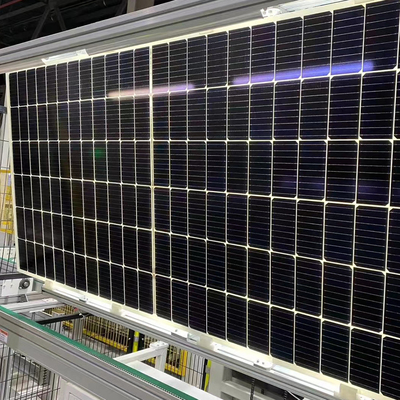

Auto Production Line
SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Strict QC System
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

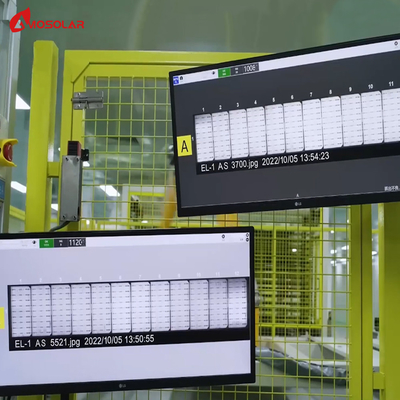

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Certifications
