Product Details:

Place of Origin: Anhui, China
Brand Name: Amosolar
Model Number: AS565-580M10-144

Payment & Shipping Terms:

Minimum Order Quantity: 20000 watts
Price: $0.15/watts 20000-99999 watts
Get Best Price Contact Now

Detail Information
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE
Panel Dimensions: 2278*1134*30mm Panel Efficiency: 22.45%, 22.45%
Warranty: 25 Years Cable Length:: 300mm (+) / 300mm(-)
Cable Size:: 4mm²(IEC) Packaging:: 36 Pcs / Pallet 720 Pcs / 40HQ Container
Junction Box:: Split Junction Box, IP68, 3 Diodes Frame:: Anodized Aluminium Alloy
Cells Type:: N-type 182*91mm Glass:: 3.2mm High Transmission, Antireflection Coating
Application Level:: Class A Certificate: CE TUV IEC

Product Description

Solar Panel Description
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 0
Mechanical Data
Model
AS565M10-144
AS570M10-144
AS575M10-144
AS580M10-144
Rated Maximum Power at STC
565W
570W
575W
580W
Open Circuit Voltage (Voc)
50.60
50.74
50.88
51.02
Maximum Power Voltage (Vmp)
41.92
42.01
42.22
42.37
Short Circuit Current (Isc)
14.23
14.31
14.39
14.47
Maximum Power Current (Imp)
13.48
13.55
13.62
13.69
PV Module Efficiency (%)
21.87
22.07
22.26
22.45
Standard
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5

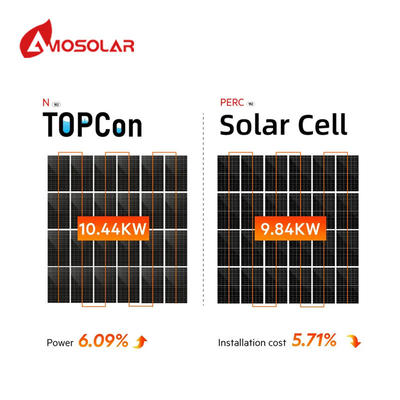

ADVANCED TECHNOLOGY
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 1
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 2
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 3
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 4
Certifications
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 5
About Us
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 6
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 7
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 8
Project
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 9

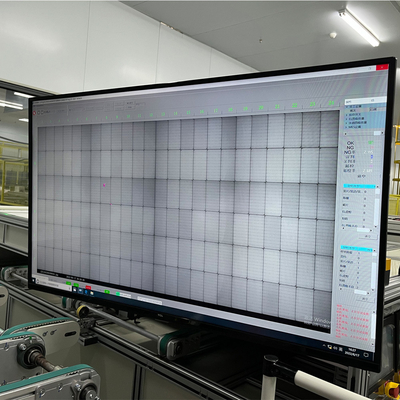

Auto Production Line
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 10
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 11
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 12
SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system

ADVANCED TECHNOLOGY

Automated manufacturing facilities Advanced quality control system Self-developed fully transparent quality management system 15+ years of experience of solar industry R&D
OEM Service
182mmx182mm Cell Size N-type 560w 575w 580w 590w Solar Panel 570 watts Half Cut Cell 13
