Product Details:

Place of Origin: Anhui, China
Brand Name: Amosolar
Model Number: AS565-580M10-144

Payment & Shipping Terms:

Minimum Order Quantity: 20000 watts
Price: $0.15/watts 20000-99999 watts
Get Best Price Contact Now

Detail Information
Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE
Panel Dimensions: 2278*1134*30mm Panel Efficiency: 22.45%, 22.45%
Warranty: 25 Years Cable Length:: 300mm (+) / 300mm(-)
Cable Size:: 4mm²(IEC) Packaging:: 36 Pcs / Pallet 720 Pcs / 40HQ Container
Junction Box:: Split Junction Box, IP68, 3 Diodes Frame:: Anodized Aluminium Alloy
Cells Type:: N-type 182*91mm Glass:: 3.2mm High Transmission, Antireflection Coating
Application Level:: Class A Certificate: CE TUV IEC

Product Description

Solar Panel Description
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 0
Mechanical Data
Model
AS565M10-144
AS570M10-144
AS575M10-144
AS580M10-144
Rated Maximum Power at STC
565W
570W
575W
580W
Open Circuit Voltage (Voc)
50.60
50.74
50.88
51.02
Maximum Power Voltage (Vmp)
41.92
42.01
42.22
42.37
Short Circuit Current (Isc)
14.23
14.31
14.39
14.47
Maximum Power Current (Imp)
13.48
13.55
13.62
13.69
PV Module Efficiency (%)
21.87
22.07
22.26
22.45
Standard
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5

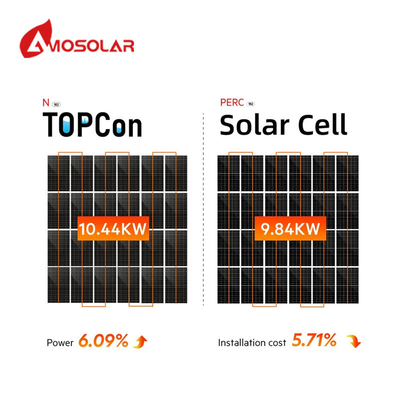

ADVANCED TECHNOLOGY
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 1
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 2
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 3
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 4
Certifications
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 5
About Us
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 6
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 7
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 8
Project
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 9

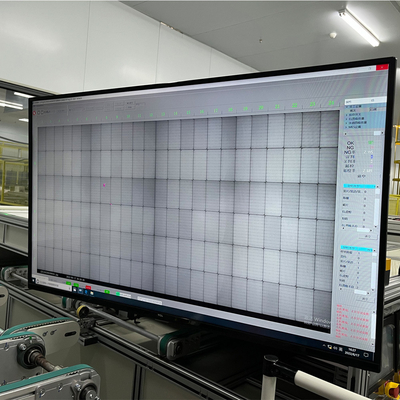

Auto Production Line
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 10
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 11
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 12
SMARTER MANUFACTURING

Utilizingilizing fully automated manufacturing facilities
Advanced quality control system

ADVANCED TECHNOLOGY

Automated manufacturing facilities Advanced quality control system Self-developed fully transparent quality management system 15+ years of experience of solar industry R&D
OEM Service
IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w 13

Want to Know more details about this product
I am interested in IP68 Junction Box N-Type Solar Panels Cost Half Cell 550w 555w 560w 580 600w 670w 1000w could you send me more details such as type, size, quantity, material, etc.
