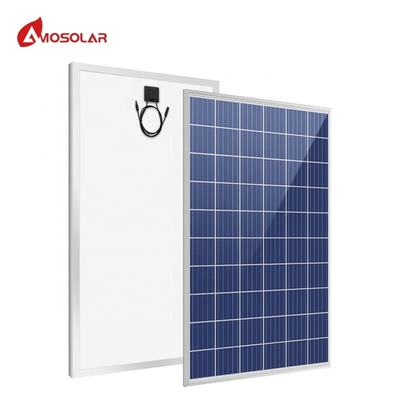

CE TUV IEC Certified 350W Polycrystalline Solar Panels with 18.3% Panel Efficiency
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | AS330-355P-72 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 watts |
|---|---|
| Price: | $0.12/watts 10000-99999 watts |
|
Detail Information |
|||
| Cell Size: | 156.75mmx156.75mm | Type: | PERC |
|---|---|---|---|
| Panel Dimensions: | 1956*992*35mm | Panel Efficiency: | 18.3% |
| Warranty: | 10 Years | Solar Cells:: | Poly 156.75 * 156.75 Mm (6 Inches) |
| Weight:: | 20.5 Kg (49.6 Lb) | Backsheet:: | White |
| Junction Box:: | Split Junction Box, IP67, 3 Diodes | Layout:: | 72( 6*12 ) |
| Rated Maximum Power:: | 355W | Packaging:: | 31pcs/pallet, 804pcs/40HQ Container |
| Cable Size:: | 4mm²(IEC) | Connector:: | PV Compatible Connector |
| Certificate: | CE TUV IEC | ||
Product Description
Product Description
Specification
ELECTRICAL DATA(STC)
Module | ASxxxP6-72 xxx = Peak Power Watts | ||||||||||
Peak Power Watts(Pmax/W) | 330 | 335 | 340 | 345 | 350 | 355 | |||||
Power Output Tolerance(W) | 0 ~ +5 | ||||||||||
Maximum Power Voltage(Vmp/V) | 37.8 | 38.0 | 38.2 | 38.4 | 38.6 | 38.8 | |||||
Maximum Power Current(Imp/A) | 8.73 | 8.82 | 8.91 | 8.99 | 9.07 | 9.15 | |||||
Open Circuit Voltage(Voc/V) | 46.1 | 46.3 | 46.5 | 46.8 | 47.0 | 47.3 | |||||
Short Circuit Current(Isc/A) | 9.24 | 9.32 | 9.40 | 9.49 | 9.58 | 9.66 | |||||
Module Effciency(%) | 17.0 | 17.2 | 17.5 | 17.7 | 18.0 | 18.3 | |||||
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring tolerance: ±3%.
*Measuring tolerance: ±3%.
ELECTRICAL DATA(NOCT)
Module | ASxxxP6-72 xxx = Peak Power Watts | ||||||||||
Maximum Power(Pmax/W) | 239 | 242 | 245 | 248 | 252 | 255 | |||||
Maximum Power Voltage(Vmp) | 34.6 | 34.7 | 34.8 | 34.9 | 35.1 | 35.3 | |||||
Maximum Power Current(Imp) | 6.91 | 6.98 | 7.05 | 7.12 | 7.18 | 7.25 | |||||
Open Circuit Voltage(Voc) | 41.3 | 42.5 | 42.6 | 42.8 | 43.0 | 43.3 | |||||
Short Circuit Current(Isc) | 7.49 | 7.55 | 7.61 | 7.68 | 7.75 | 7.82 | |||||
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
Grade A Material
>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer
Durability.
Durability.
21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer
Structure.
Structure.
12% Ultra Clear Tempered Glass.
30% Lower Reflection
30% Lower Reflection
22% Higher Efficiency,5BB Cells
93 Fingers PV Cells, Anti-Pid
93 Fingers PV Cells, Anti-Pid
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
IP67 Waterproofness Junction Box
Innovative Full-Glue-Filled
Innovative Full-Glue-Filled
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
Waterproof Labels
OEM Optional
OEM Optional
Auto Production Line
Strict QC System
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.

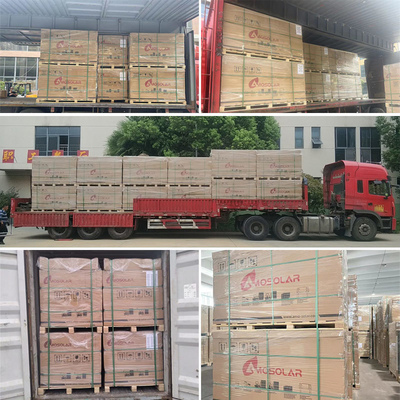

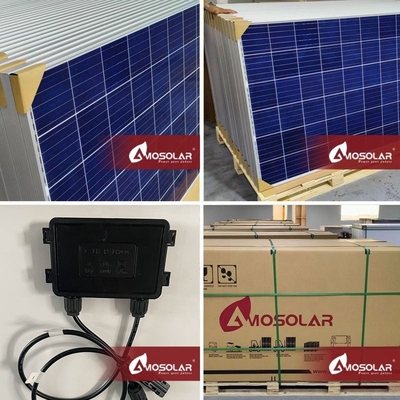

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Model | ASxxxP-72 | ||||
Modules per box | 31 pieces | ||||
Modules per 40' container | 804 pieces | ||||

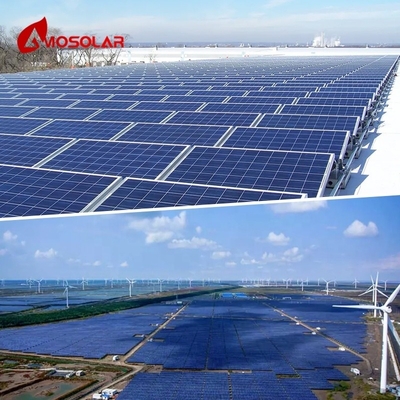

Project
FAQ
1: What kind of Solar Cells we have?
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Poly solar cell 156.75*156.75mm.
2: What is the lead time?
Normally 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
2: What is the lead time?
Normally 15 working days after advance payment.
3: What is your monthly capacity?
Monthly capacity is about 200MW.
4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.
5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.
6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.
7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
8.What's the delivery & payment term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Want to Know more details about this product
