Product Details:

Place of Origin: Anhui, China
Brand Name: Amosolar
Model Number: AS380-410M10-108 FULL BLACK

Payment & Shipping Terms:

Minimum Order Quantity: 100 watts
Price: $0.15/watts 100-99999 watts
Packaging Details: Cartons and pallets and wooden box
Get Best Price Contact Now

Detail Information

Cell Size: 182mmx182mm Type: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV, Flexible
Panel Dimensions: 1722*1134*35MM Panel Efficiency: 21%
Warranty: 25 Years Warranty Solar Cell: 182*182mm,Grade A
Junction Box: IP68 Rated Frame: Anodized Aluminium Alloy
Product Name: Solar Panel Glass: 3.2mm Tempered Low Iron
OEM Order: Acceptable Connector: MC4 Compatible Connector
Cable: 4mm2 Power Tolerance: 0~+5W
Certificate: CE/TUV/INMETRO/ISO

Product Description

Solar Panel Description
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 0
Certifications
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 1
Mechanical Data
ELECTRICAL PARAMETERS
Rated Maximum Power at STC
380W
385W
390W
395W
400W
405W
410W
Open Circuit Voltage (Voc)
36.31
36.46
36.61
36.76
36.91
37.06
37.21
Maximum Power Voltage (Vmp)
30.56
30.72
30.88
31.04
31.20
31.36
31.52
Short Circuit Current (Isc)
13.40
13.47
13.54
13.61
13.68
13.75
13.82
Maximum Power Current (Imp)
12.43
12.53
12.63
12.73
12.82
12.91
13.01
PV Module Efficiency (%)
19.46
19.72
19.97
20.23
20.48
20.74
21.00
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
Layout
108( 6 × 18 )
Junction Box
Split junction box, IP67, 3 diodes
Weight
21.0KG
Cable Length
300mm (+) / 300mm(-)
Cable Size
4mm²(IEC)
PV Size
1722×1134×35mm
Packaging
31 pcs / pallet
936 pcs / 40HQ container

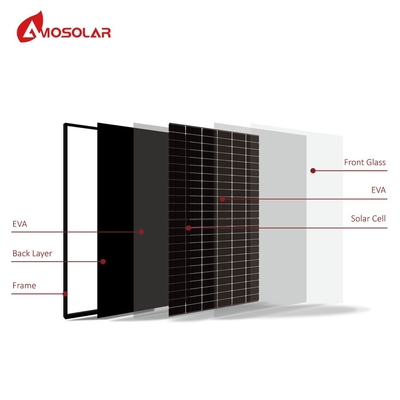

Raw Material
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 2
FLAT/XINYI 3.2mm Coated Tempered Glass
22% Higher Effiency
Cell by Tier 1 Brand/A Grade
AKOME Anodized Black Aluminum Alloy Frame
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 3
Junction Box by TL, QC Solar Innovatiove Full-Glue-Filled IP68 Waterproofness
PV Connector by TL, QC Solar MC4 4MM Qualified cable
Waterproof Lables Product by Waterproof Lables
AMOSOLAR / OEM
Auto Production Line
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 4
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 5
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 6
SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities

ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system

Strict QC System
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 7
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 8
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 9
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 10
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

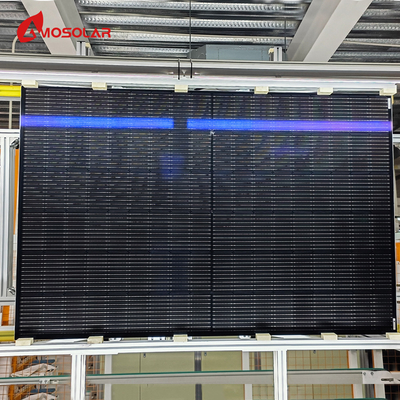

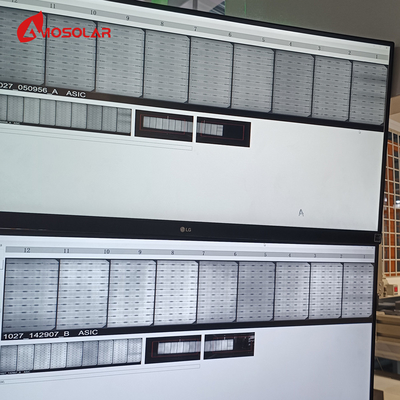

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.

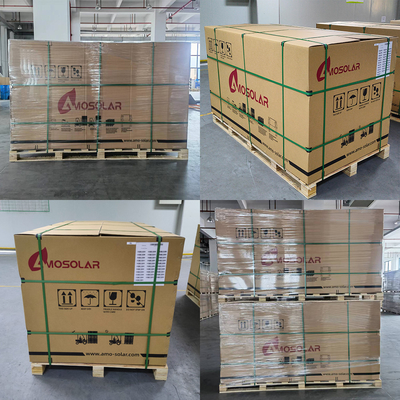

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 11
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 12
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 13
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 14
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 15
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 16
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 17
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 18
Model
ASXXXM10-108
ASXXXM10-120
ASXXXM10-132
ASXXXM10-144
ASXXXM10-156
Modules per pallet
36 pieces
36 pieces
31pieces
36 pieces
30 pieces
Modules per 40' HQ
936 pieces
864 pieces
682pieces
620 pieces
540 pieces
Project
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 19
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 20
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 21
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 22
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 23
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 24
OEM Service
400W 410w 420watt 430w Full Black Mono Solar Panel Amosolar Certificate CE/TUV/INMETRO/ISO 25
FAQ
1: What kind of Solar Cells we have?
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Poly solar cell 156.75*156.75mm.

2: What is the lead time?
Normally 15 working days after advance payment.

3: What is your monthly capacity?
Monthly capacity is about 200MW.

4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.

5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.

6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.

7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.

8.What's the delivery & payment term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
