Product Details:

Place of Origin: Anhui, China
Brand Name: Amosolar
Model Number: AS400-420M10-108

Payment & Shipping Terms:

Minimum Order Quantity: 1000 watts
Price: $0.12/watts 1000-99999 watts
Get Best Price Contact Now

Detail Information
Cell Size: 182mmx182mm Type: PERC, Half Cell, All Black, MWT, HJT, N-TYPE, TOPCON
Panel Dimensions: 1723*1134*35mm Panel Efficiency: 21.5%
Warranty: 25YEARS Number Of Cells:: 108 Cells (6x18)
Front Side Glass:: High Transparency Solar Glass 3.2mm Junction Box:: IP68 Rated
Frame:: All Black Anodized Aluminium Alloy Wind/Snow Load:: 2400Pa/5400Pa
Weight:: 20.9kg Connector:: MC4 Compatible Connector
Cable:: 4mm2 Keyword:: Half Cell All Black Mono Solar Panel
Backsheet:: Black

Product Description

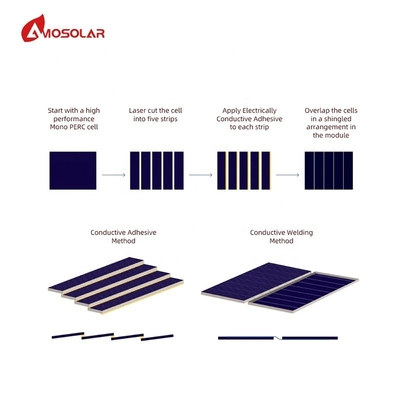

Solar Panel Description
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 0
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 1
Certifications
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 2
Mechanical Data
Model
AS400M10-108
AS405M10-108
AS410M10-108
AS415M10-108
AS420M10-108
Rated Maximum Power at STC
400W
405W
410W
415W
420W
Open Circuit Voltage (Voc)
43.50
43.58
43.61
43.66
43.68
Maximum Power Voltage (Vmp)
37.78
37.82
38.31
38.32
38.44
Short Circuit Current (Isc)
11.33
11.43
11.44
11.53
11.54
Maximum Power Current (Imp)
10.59
10.72
10.71
10.83
10.93
PV Module Efficiency (%)
20.5
20.7
21.0
21.3
21.5
Standard
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 3
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 4
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 5

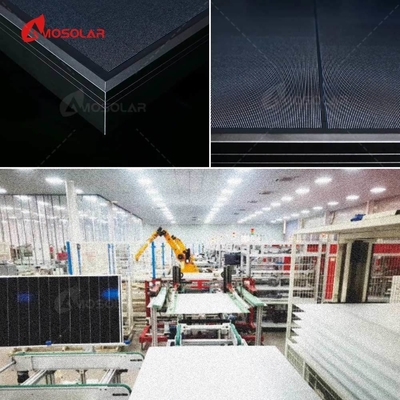

Strict QC System
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 6
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 7
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 8
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 9
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 10
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 11
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 12
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 13

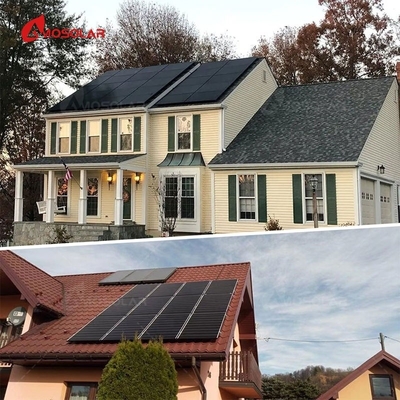

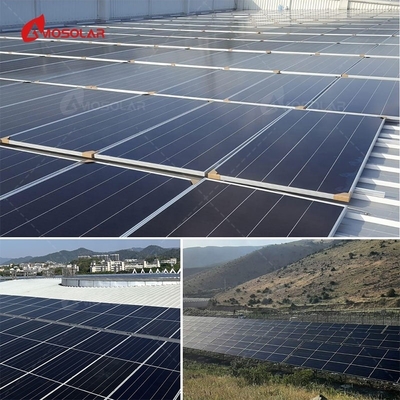

Project
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 14
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 15
OEM Service
21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System 16

Want to Know more details about this product
I am interested in 21.5% Mono Silicon Cells Full Black Shingled Solar Panels for Home Solar Power System could you send me more details such as type, size, quantity, material, etc.
