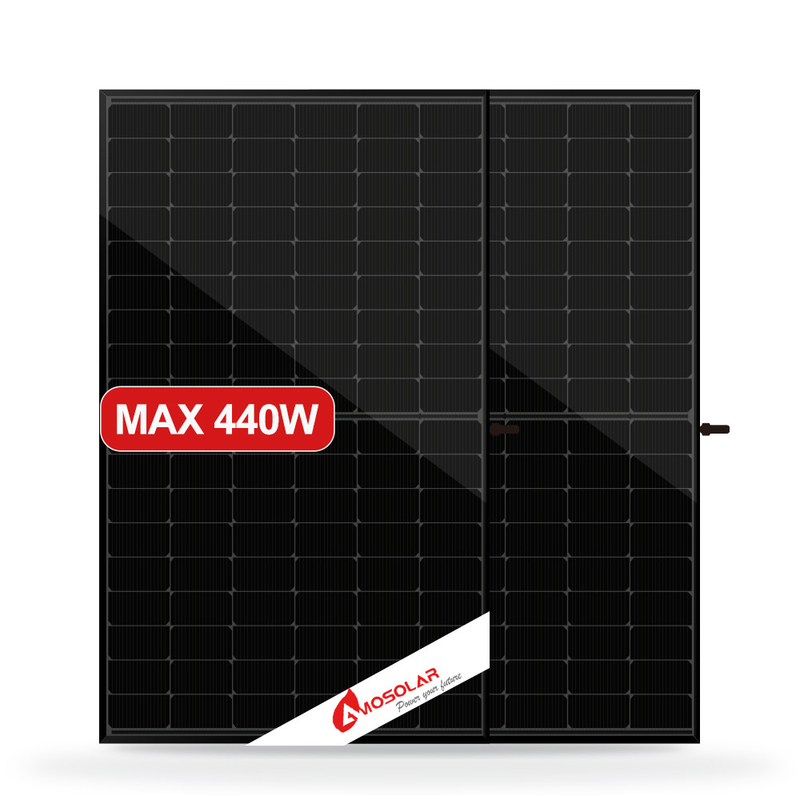

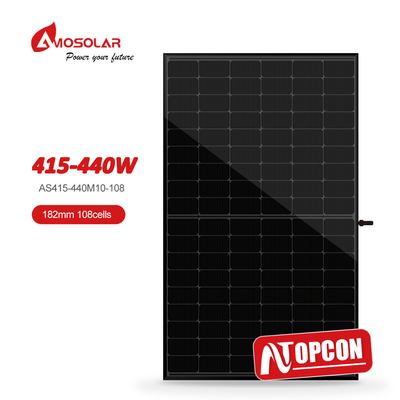

1722*1134*35mm N-type Mono-crystalline Solar Panel TopCon for Maximum Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | Amosolar |
| Model Number: | AS415-440M10-108 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 watts |
|---|---|
| Price: | $0.15/watts 1000-999999 watts |
|
Detail Information |
|||
| Cell Size: | 182mmx182mm | Type: | Half Cell, N-TYPE, TOPCON |
|---|---|---|---|
| Panel Dimensions: | 1722*1134*35mm | Panel Efficiency: | 22.53% |
| Warranty: | 30Years | Solar Cell: | Mono 182*182mm |
| Cell Type: | N-type Mono-crystalline | Application: | Solar Power System |
| Junction Box: | IP68 | Frame: | Anodized Aluminium Alloy |
| No. Of Cells: | 108 (6*18) Cells | Max. Power: | 440Watt |
| Weight: | 21kg | OEM Order: | Acceptable |
Product Description
Company Profile
Maximum Power(Pmax) | 415w | 420w | 425w | 430w | 435w | 440W | |||||
Open-circuit Voltage (Voc) | 39.29 | 39.41 | 39.53 | 39.65 | 39.77 | 39.89 | |||||
Maximum Power Voltage(Vmp) | 31.65 | 31.85 | 32.05 | 32.25 | 32.45 | 32.65 | |||||
Short-circuit Current (Isc) | 13.47 | 13.53 | 13.59 | 13.65 | 13.71 | 13.77 | |||||
Maximum Power Current (Imp) | 13.12 | 13.19 | 13.27 | 13.34 | 13.41 | 13.48 | |||||
Solar Panel Efficiency | 21.25% | 21.51% | 21.93% | 22.02% | 22.28% | 22.53% | |||||
Junction Box | IP68 | ||||||||||
Frame | Anodized Aluminium Alloy | ||||||||||
Weight | 21kg | ||||||||||
Power | 415w-440w | ||||||||||
Cell Type | N-type Mono-crystalline | ||||||||||
Solar cell | Mono 182*182mm | ||||||||||
OEM Order | Acceptable | ||||||||||
Number of Cells | 108 (6 * 18) | ||||||||||
Amosolar solar panel have full line of international authoritative certificates such as CE, TUV, IEC, INMETRO, etc.
90+ countries where Amosolar PV modules have contributed to the zero-emission goal

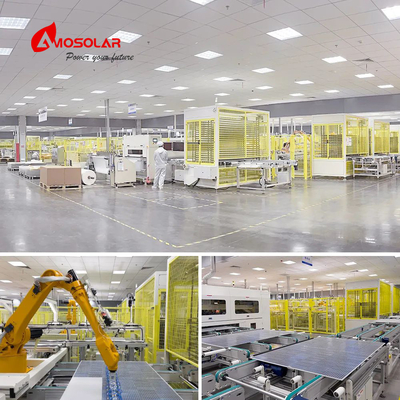

SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Quality Control
After Lamination,Check Each Panels
Make sure that the surface of each solar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and test the voltage and current of each solar panel to ensure the efficiency of each solar panel.
Make sure that the surface of each solar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and test the voltage and current of each solar panel to ensure the efficiency of each solar panel.
Model | ASXXXM10-108 | ASXXX310-120 | ASXXXM10-120 | ASXXXM10-132 | ASXXXM10-132 | ASXXXM10-144 | ASXXXM10-156 | ||||||
Modules per pallet | 31pcs | 36pcs | 31pcs | 36pcs | 31pcs | 36pcs | 31pcs | 36pcs | 31pcs | ||||
Modules per 40'HQ | 806pcs | 936pcs | 744pcs | 864pcs | 682pcs | 792pcs | 720 pcs | 620pcs | 496pcs | ||||
Want to Know more details about this product
