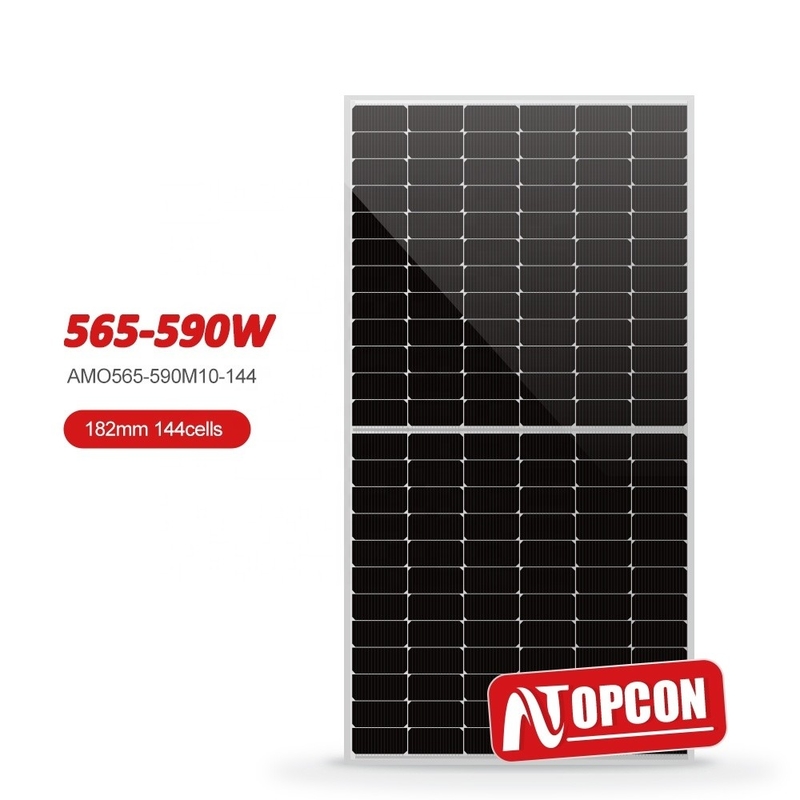

182mmx182mm Cell Size 144 Cells Mono Solar Panel 565W 575W 585W 590W Short Lead Time
Product Details:
| Place of Origin: | China |
| Brand Name: | Amosolar |
| Model Number: | AMO565-590M10-144 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 31 pieces |
|---|---|
| Price: | $60.00/pieces 31-203 pieces |
|
Detail Information |
|||
| Cell Size: | 182mmx182mm | Type: | Half Cell, N-TYPE, TOPCON |
|---|---|---|---|
| Panel Dimensions: | 2279*1134*35mm | Panel Efficiency: | 22.83% |
| Warranty: | 30Years | Solar Cell: | Mono 182*182mm |
| Cell Type: | N-type Mono-crystalline | Application: | Solar Power System |
| Junction Box: | IP68 | Frame: | Anodized Aluminium Alloy |
| No. Of Cells: | 144 (6*24) Cells | Max. Power: | 590Watt |
| Weight: | 28.6kg | OEM Order: | Acceptable |
Product Description
Company Profile
Amosolar_One Stop Solar Solution Supplier&Your Reliable Solar Partner
Are you looking for solar panels to start your business? We accept individual buyers,engineering installers, distributors, etc.To meet your various needs, Amosolar panel have a series of international authoritative certificates such as CE, TUV, IEC, INMETRO, CQC. Also accept OEM&ODM Services.
Maximum Power(Pmax) | 565w | 570w | 575w | 580w | 585w | 590W | |||||
Open-circuit Voltage (Voc) | 52.69 | 52.81 | 52.93 | 53.05 | 53.17 | 53.29 | |||||
Maximum Power Voltage(Vmp) | 43.26 | 43.46 | 43.66 | 43.86 | 44.06 | 44.26 | |||||
Short-circuit Current (Isc) | 13.60 | 13.66 | 13.72 | 13.78 | 13.84 | 13.90 | |||||
Maximum Power Current (Imp) | 13.08 | 13.13 | 13.18 | 13.23 | 13.28 | 13.33 | |||||
Solar Panel Efficiency | 21.86% | 22.06% | 22.25% | 22.44% | 22.64% | 22.83% | |||||
Junction Box | IP68 | ||||||||||
Frame | Anodized Aluminium Alloy | ||||||||||
Weight | 28.6kg | ||||||||||
Power | 565w-590w | ||||||||||
Cell Type | N-type Mono-crystalline | ||||||||||
Solar cell | Mono 182*182mm | ||||||||||
OEM Order | Acceptable | ||||||||||
Number of Cells | 144 (6 * 24) | ||||||||||
Amosolar solar panel have full line of international authoritative certificates such as CE, TUV, IEC, INMETRO, etc.
90+ countries where Amosolar PV modules have contributed to the zero-emission goal

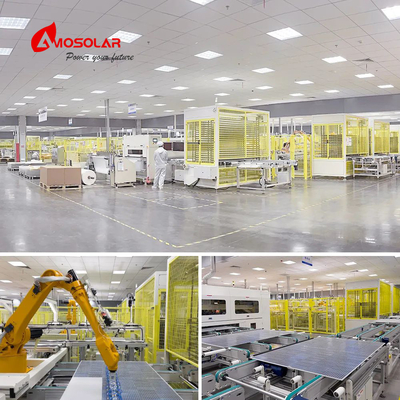

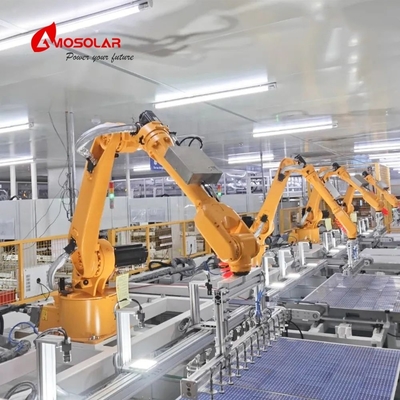

SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Utilizingilizing fully automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system.
ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Quality Control
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar
panel to ensure the efficiency of each solar panel.
Make sure that the surface of eachsolar panel is complete, clean and correct.
EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring
and video/photorecord for each cell and panel.
IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar
panel to ensure the efficiency of each solar panel.
Want to Know more details about this product
