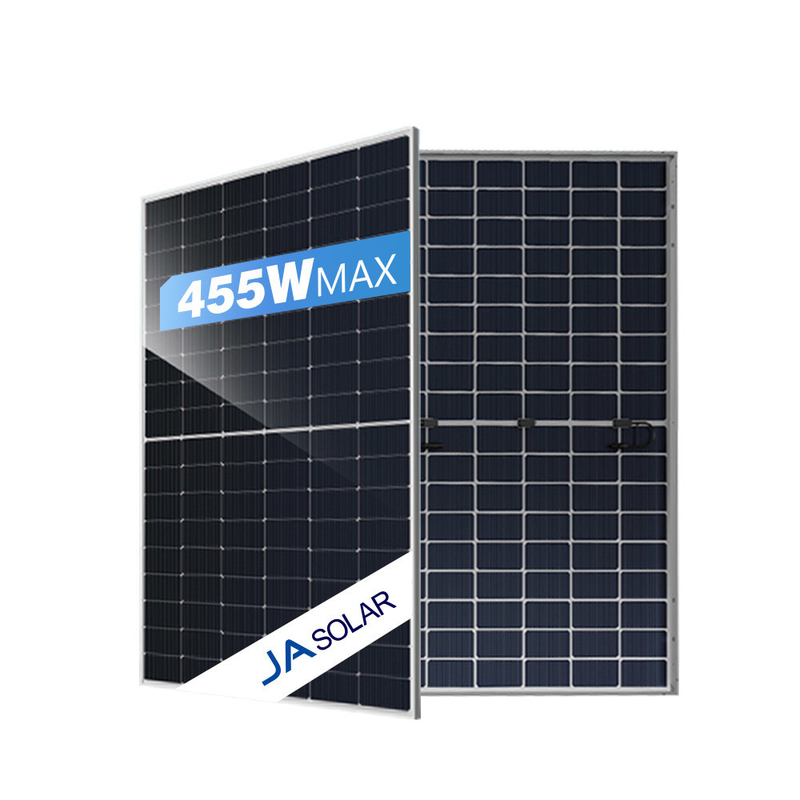

Home Bifacial Solar Panel Kit 100W 300W 400W 400W 550W with Anti-reflective Glass
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | JA |
| Model Number: | JAM54D40/LB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 watts |
|---|---|
| Price: | $0.11/watts 20000-99999 watts |
|
Detail Information |
|||
| Cell Size: | 182mmx94mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black |
|---|---|---|---|
| Panel Dimensions: | 1762±2mm*1134±2mm*30±1mm | Warranty: | 30years |
| Product Name: | Sola Panel | Brand Name: | JA Solar |
| Solar Cell: | High Efficiency Mono | Frame: | Anodized Aluminium Alloy |
| Keyword: | Pv Module | Junction Box: | IP 68 Rated |
| Glass: | 3.2 Mm Anti-reflective Glass | Efficiency: | 20%-23% |
| Weight: | 22kg±3% | Certificate: | CE TUV IEC |
Product Description
Product Description

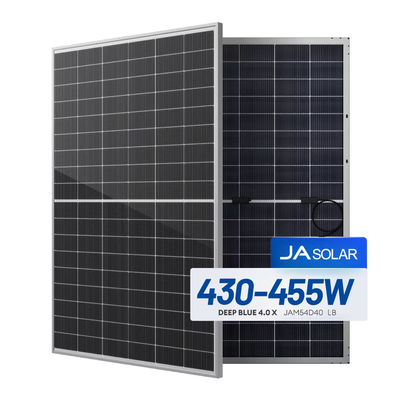

Specification
Module | JAM54D40430/LB | JAM54D40435/LB | JAM54D40440/LB | JAM54D40445/LB | JAM54D40450/LB | JAM54D40455/LB | |||||
Rated Maximum Power(Pmax)[W] | 430 | 435 | 440 | 445 | 450 | 455 | |||||
Open Circuit Voltage (Voc)[V] | 38.50 | 38.70 | 38.90 | 39.10 | 39.30 | 39.50 | |||||
Maximum Power Voltage(Vmp)[V] | 32.12 | 32.29 | 32.47 | 32.65 | 32.82 | 33.00 | |||||
Short Circuit Current(Isc)[A] | 14.14 | 14.23 | 14.31 | 14.40 | 14.48 | 14.56 | |||||
Maximum Power Current(Imp)[A] | 13.39 | 13.47 | 13.55 | 13.63 | 13.71 | 13.79 | |||||
Size/mm | 1762*1134*30±2mm | ||||||||||
Panel Efficiency | 21.5% | 21.8% | 22.0% | 22.3% | 22.5% | 22.8% | |||||
Certificate | CE TUV INMETRO ETL | ||||||||||
Warranty | 30 year | ||||||||||
Module | JA Solar Panel | ||||||||||
Cell Orientation | 108Cell(6*18) | ||||||||||
Weight | 22KG±3% | ||||||||||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||||||||||
Backsheet | White/Black | ||||||||||
Frame | Silver / Black Anodized Aluminium Alloy | ||||||||||
Junction Box | IP68,3 diodes | ||||||||||
Cables | TUV 1*4.0mm²/UL 12AWG | ||||||||||
Operating Temperature | -40℃~+85℃ | ||||||||||
ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO | ||||||||||||
Module | JAM54D40430/LB | JAM54D40435/LB | JAM54D40440/LB | JAM54D40445/LB | JAM54D40450/LB | JAM54D40455/LB | ||||||
Rated Max Power(Pmax)[W] | 464 | 470 | 475 | 481 | 486 | 491 | ||||||
Open Circuit Voltage(Voc)[V] | 38.50 | 38.70 | 38.90 | 39.10 | 39.30 | 39.50 | ||||||
Max Power Voltage(Vmp)[V] | 32.11 | 32.29 | 32.47 | 32.65 | 32.82 | 32.99 | ||||||
Short Circuit Current(Isc)[A] | 15.27 | 15.36 | 15.46 | 15.55 | 15.64 | 15.73 | ||||||
Max Power Current(Imp)[A] | 14.46 | 14.55 | 14.63 | 14.72 | 14.81 | 14.89 | ||||||

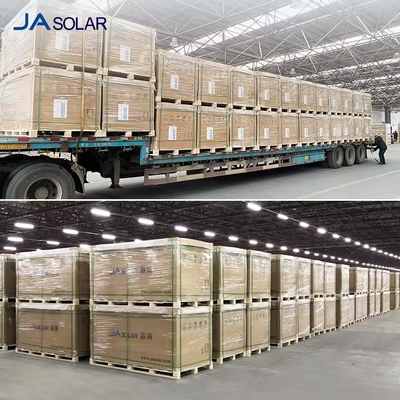

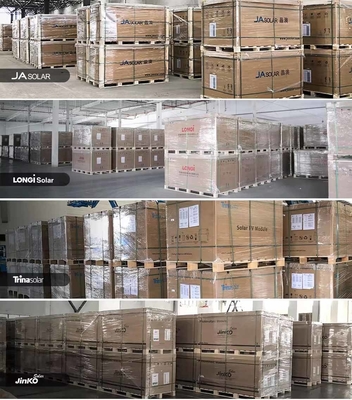

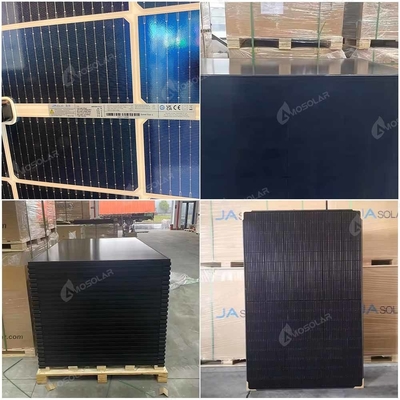

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
A: What are your main products?
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
If you want to know more information, you can send inquiry to our team, we will cover more details.
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
Sample will charge cost, but the cost will be refund after bulk order.
If you want to know more information, you can send inquiry to our team, we will cover more details.
