Product Details:

Place of Origin: China
Brand Name: Growatt
Model Number: SPF6000ES plus

Payment & Shipping Terms:

Price: $419.00/pieces 1-8 pieces
Get Best Price Contact Now

Detail Information

Input Voltage: 48V Output Voltage: 100-240V / 380-415V
Output Current: 10-100A Output Frequency: 50/60Hz
Output Type: Single, Three Phase Size: 460*395*132mm
Type: DC/AC Inverters Inverter Efficiency: 93 %
Certificate: ISO 9001 CE IEC TUV Warranty: 10 YEARS
Weight: 13.5KG Product Name: Growatt SPF 6000ES Plus Dual MPPT 6KW Off Grid Solar Inverter
Inverter Type: Single Phase Off Grid Inverter Application: Solar Power System Home
Battery Voltage: 6KW Rated Power: 48VDC
Battery Type: Lithium/Lead-acid Rated Power: 6000VA/6000W
Parallel Capability: Yes, 6 Units Maximum AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
Keyword: Growatt Inverter

Product Description

48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 0
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 1
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 2
Datasheet
SPF 6000 ES Plus
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
Inverter Output
Rated Power
6000VA/6000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
12000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical,20ms Max
Solar Charger
Maximum PV Array Power
8000W
MPPT Range @ Operating Voltage
20VDC ~ 450VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker
2/1
Max. input current per MPP tracker
16A
Maximum PV Array Open
Circuit Voltage
500VDC
Maximum Solar Charge Current
100A
AC Charger
Charge Current
80A
AC Input Voltage
230VAC
Frequency Range
50Hz/60Hz (Auto sensing)
Physical
Protection Degree
IP20
Dimension (W/H/D)
460/395/132mm
Net Weight (kgs)
13.5
Operating Environment
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 3
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 4
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 5


COMPANY PROFILE


Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.

Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients' requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 6
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 7

QUALITY AS THE GENE OF PRODUCTS

Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 8
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 9

RIGOROUS SYSTEM OF CONTROL

Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 10
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 11
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 12

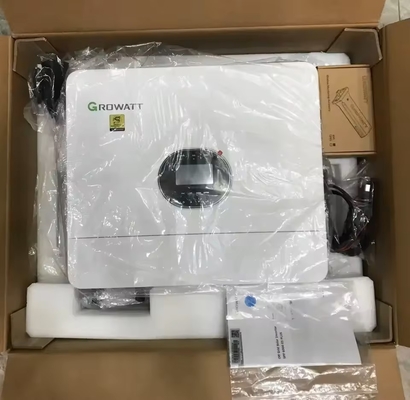

PACKAGING & DELIVERING

All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 13
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 14
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 15
48V Input Voltage Growatt SPF 6000 ES Plus 5kW Off Grid Inverter for Your Business 16
