LONGi Solar Panel 565W 570W 575W 580W 585W 22% Panel Efficiency 3.2mm Tempered Low Iron Glass
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Longi |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 watts |
|---|---|
| Price: | $0.20/watts 20000-299999 watts |
|
Detail Information |
|||
| Cell Size: | 182mmx182mm | Type: | PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV |
|---|---|---|---|
| Panel Dimensions: | 2278*1134*35mm | Panel Efficiency: | 22% |
| Warranty: | 25 Years | Solar Cell: | 182*182mm, Grade A |
| Application: | Solar Power System | Junction Box: | IP68 Rated |
| Frame: | Anodized Aluminium Alloy | Product Name: | Solar Panels |
| Key Word: | PV Modules | Glass: | 3.2mm Tempered Low Iron |
| Connector: | MC4 Compatible Connector | Cable: | 4.0mm² |
| Certificate: | CE, TUV, IEC, Inmetro, ISO | ||
Product Description
Solar Panel Description
Mechanical Data
Hi-MO 5m LR5-72HPH540~560M | ||||||||||
Maximum Power（Pmax/W） | 540 | 545 | 550 | 555 | 560 | |||||
Voltage at Maximum Power(Vmp/V) | 41.65 | 41.80 | 41.95 | 42.10 | 42.25 | |||||
Current at Maximum Power(Imp/A) | 12.97 | 13.04 | 11.04 | 13.19 | 13.26 | |||||
Open Circuit Voltage（Voc/V) | 49.50 | 49.65 | 49.80 | 49.95 | 50.10 | |||||
Short Circuit Current(lsc/A) | 13.85 | 13.92 | 13.98 | 14.04 | 14.10 | |||||
Module Efficiency(%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 | |||||
Hi-MO 6 LR5-72HTH565~600M | ||||||||||||||||
Maximum Power（Pmax/W） | 565 | 570 | 575 | 580 | 585 | 590 | 595 | 600 | ||||||||
Voltage at Maximum Power(Vmp/V) | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 | 44.36 | 44.51 | 44.66 | ||||||||
Current at Maximum Power(Imp/A) | 12.96 | 13.03 | 13.10 | 13.17 | 13.24 | 13.31 | 13.37 | 13.44 | ||||||||
Open Circuit Voltage（Voc/V) | 51.76 | 51.91 | 52.06 | 52.21 | 52.36 | 52.51 | 52.66 | 52.81 | ||||||||
Short Circuit Current(lsc/A) | 14.01 | 14.07 | 14.14 | 14.20 | 14.27 | 14.33 | 14.40 | 14.46 | ||||||||
Module Efficiency(%) | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 | 22.8 | 23.0 | 23.2 | ||||||||
Hi-MO 7 LR5-72HGD 560~590M | ||||||||||||||
Maximum Power（Pmax/W） | 560 | 565 | 570 | 575 | 580 | 585 | 590 | |||||||
Voltage at Maximum Power(Vmp/V) | 42.82 | 42.91 | 43.00 | 43.11 | 43.22 | 43.33 | 43.44 | |||||||
Current at Maximum Power(Imp/A) | 13.08 | 13.17 | 13.26 | 13.34 | 13.42 | 13.51 | 13.59 | |||||||
Open Circuit Voltage（Voc/V) | 50.99 | 51.09 | 51.19 | 51.30 | 51.41 | 51.52 | 51.63 | |||||||
Short Circuit Current(lsc/A) | 13.89 | 13.97 | 14.05 | 14.14 | 14.22 | 14.30 | 14.38 | |||||||
Module Efficiency(%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 | 22.8 | |||||||
Hi-MO 5m
LR5-72HPH540~560M
Power Range: 540-560W
No. of Cells: 144 cells
Dimension: 2278x1134x35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278x1134x35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 6
LR5-72HTH565~585M
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 6
LR5-72HTH590~600M
Power Range: 590-600W
No. of Cells: 144 cells
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35 mm
Weight: 27.5 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Hi-MO 7
LR5-72HGD 560~590M
Power Range: 560-590W
No. of Cells: 144 cells
Dimension: 2278×1134×30 mm
Weight:31.8 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimension: 2278×1134×30 mm
Weight:31.8 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Why Choose Us
we have cooperated with Tier 1 solar panels, many well-known solar inverters brands. And we can supply large solar energy series products, comprehensive solar-tech support.
Tier 1 Solar

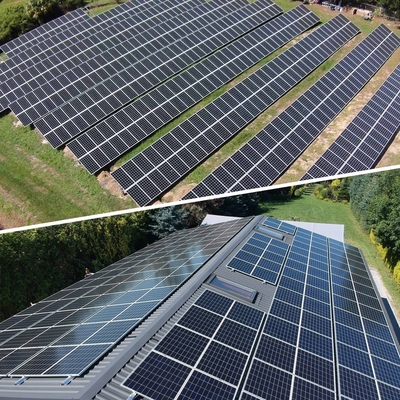

Project
