685W 690W 695W 700W 705W 710W Trina Solar Bificial Dual Glass PV Module TSM-NEG21C.20
Product Details:
| Place of Origin: | zhejiang, China |
| Brand Name: | Trina |
| Model Number: | TSM-DE21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 watts |
|---|---|
| Price: | $0.11/watts 10000-9999999 watts |
|
Detail Information |
|||
| Cell Size: | 210mmx210mm | Type: | PERC, Half Cell, TOPCON |
|---|---|---|---|
| Panel Dimensions: | 2384x1096x35mm | Panel Efficiency: | 21.4 |
| Warranty: | 30years | Product Name: | Product Name |
| Material: | Mono PREC | Power: | 645W~670W |
| Solar Cell: | 132 Cells | Weight: | 28.6kg |
| Frame: | Anodized Aluminium Alloy | Glass: | 3.2mm Tempered Low Iron |
| Feature: | High Efficiency Mono Solar Panel | Certificate: | CE TUV |
Product Description
Product Description
Specification
ELECTRICAL DATA (STC) | ||||||||||
Peak Power Watts-PMAX (Wp) | 650 | 655 | 660 | 665 | 670 | |||||
Maximum Power Voltage-VMPP (V) | 37.4 | 37.6 | 37.80 | 38.00 | 38.20 | |||||
Maximum Power Current-IMPP (A) | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 | |||||
Open Circuit Voltage-VOC (V) | 45.30 | 45.50 | 45.70 | 45.90 | 46.10 | |||||
Short Circuit Current-ISC (A) | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 | |||||
Module Eciency | 20.90 | 21.10 | 21.20 | 21.40 | 21.60 | |||||
Power Tolerance-PMAX (W) | 0 ~ +5 | |||||||||
STC | Irradiance1000W/㎡,Cell Temperature 25℃, Air Mass 1.5 | |||||||||
ELECTRICAL DATA (NOCT) | ||||||||||
Peak Power Watts-PMAX (Wp) | 492 | 496 | 500 | 504 | 508 | |||||
Maximum Power Voltage-VMPP (V) | 34.90 | 35.10 | 35.30 | 35.40 | 35.60 | |||||
Maximum Power Current-IMPP (A) | 14.09 | 14.13 | 14.17 | 14.22 | 14.26 | |||||
Open Circuit Voltage-VOC (V) | 42.70 | 42.90 | 43.00 | 43.20 | 43.40 | |||||
Short Circuit Current-ISC (A) | 14.86 | 14.89 | 14.93 | 14.96 | 15.01 | |||||
NOCT | Irradiance 800W/㎡, Cell Temperature 20℃, Air Mass 1.0 | |||||||||
Vertex S
Power Range: 390-405WNo. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Vertex S
Power Range: 415-435W
No. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Vertex S
Power Range: 415-435WNo. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

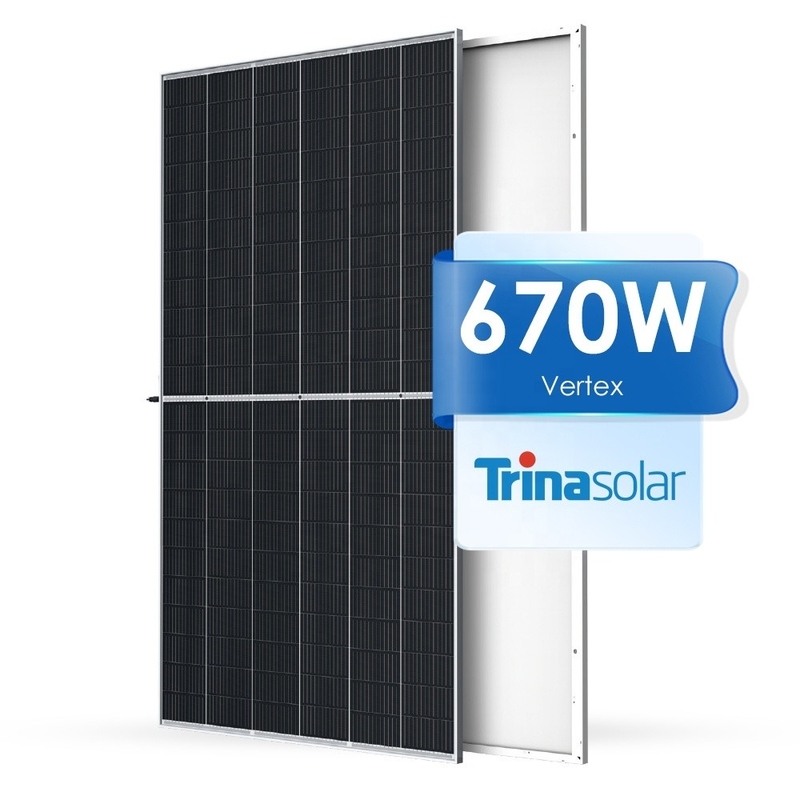

Vertex S
Power Range: 645-670WNo. of Cells: 132 cells
Dimension: 2384×1303×35 mm mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Dimension: 2384×1303×35 mm mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs

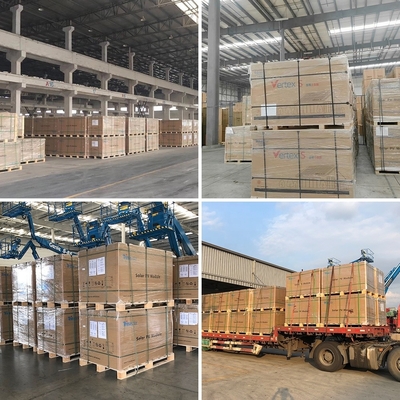

Packing & Delivery
Company Profile
FAQ
A: What are your main products?
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
If you want to know more information, you can send inquiry to our team, we will cover more details.
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
Sample will charge cost, but the cost will be refund after bulk order.
If you want to know more information, you can send inquiry to our team, we will cover more details.
