Amosolar was founded in 2008, is a professional industrial and trade solar panel manufacturer and provides complete solar system
products and services. We have introduced the world's most advanced automated production lines and testing equipment, with an
annual output of 2GW of solar panels. Our products have been recognized and certified by ISO, CE, IEC, TUV, INMETRO, CHUBB, PICC
and other international well- known enterprises.
 |

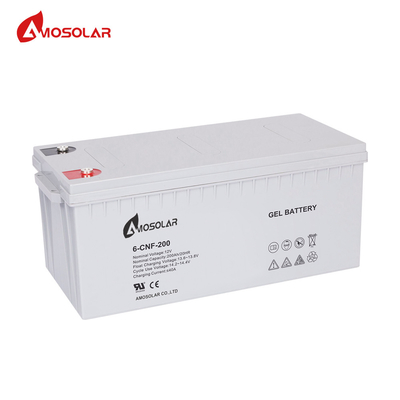

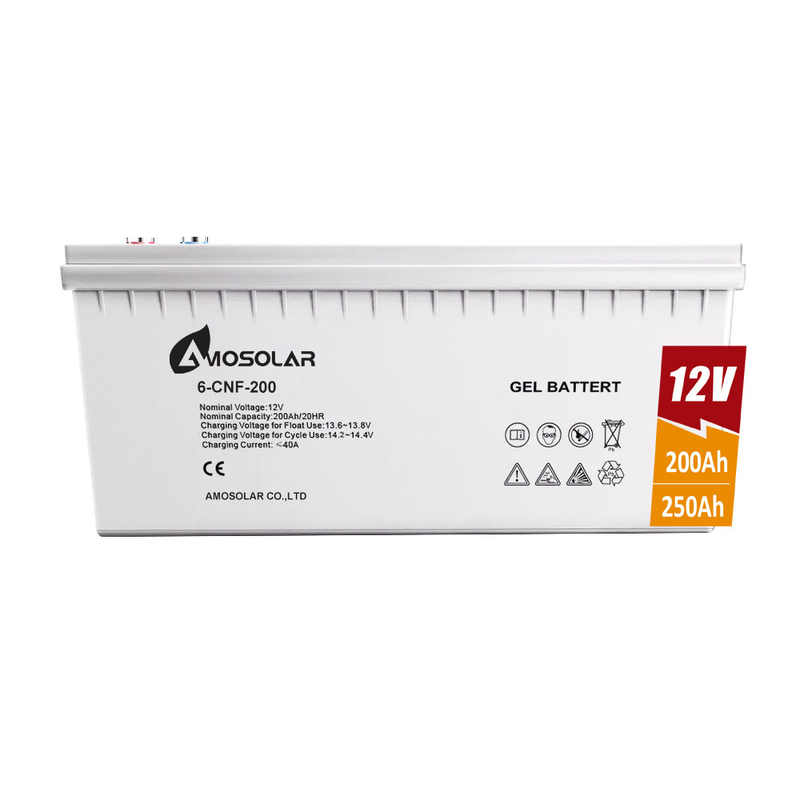

12V 200Ah 250amp Rechargeable AGM Sealed Lead Acid Battery For UPS and EPS Performance
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | 12v100ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $98.00/pieces 10-99 pieces |
| Packaging Details: | Cartons and pallets and wooden box |
| Supply Ability: | 100000 Piece/Pieces per Year |
|
Detail Information |
|||
| Warranty: | 3years, 3 Years | Chargeable: | Yes |
|---|---|---|---|
| Application: | Power Tools, Home Appliances, Consumer Electronics, Golf Carts, BOATS, SUBMARINES, Automotive, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Car, Elec | Battery Type: | Deep Cycle: Sealed Gel, Lead-Acid |
| Cycle Life: | 3000 | Storage Type: | Room Temperature Storage |
| The Charging Ratio: | 1c | The Discharge Rate: | 1c |
| Product Name: | Lead-acid Maintenance-free Battery | Capacity: | 12V100AH |
| OEM/ODM: | Yes(Accepted) | Cycle Life: | 1500times |
| Voltage: | 12V/24V/36V/48V | Type: | GEL Lead Acid Battery |
| Size: | 330*173*212mm | Port: | Shanghai / Ningbo /Guangzhou / Shenzhen |
Product Description
Product Description
Mechanical Data
Model | 6-GFM(G)-100Ah | 6-GFM(G)-150Ah | 6-GFM(G)-200Ah | 6-GFM(G)-250Ah | |||
Cells Per Unit | 6 | ||||||
Voltage Per Unit | 12V | ||||||
Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C | |||
Weight | 29kg | 42kg | 58.5kg | 67kg | |||
Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ | |||
Terminal | F1/F2 | ||||||
Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) | |||
Design Life | 10~15 years | ||||||
Maximum Charging Current | 25A | 37.5A | 50A | 62.5A | |||
Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell | ||||||
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Cycle Use Voltage Temperature Compensation: -30mV/°C/Cell | ||||||
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | ||||||
Normal Operating Temperature Range | 25°C±5°C | ||||||
Self Discharge | Less than 3% at 25°C per month | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional | ||||||

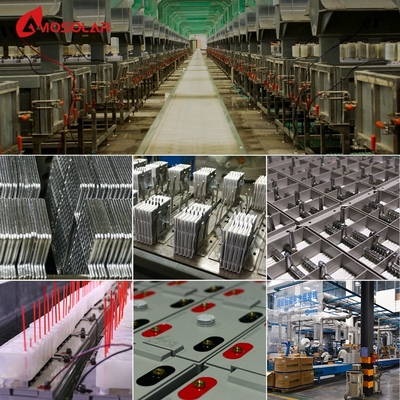

Auto Production Line
Our Factory
Packaging & Delivery
Want to Know more details about this product
