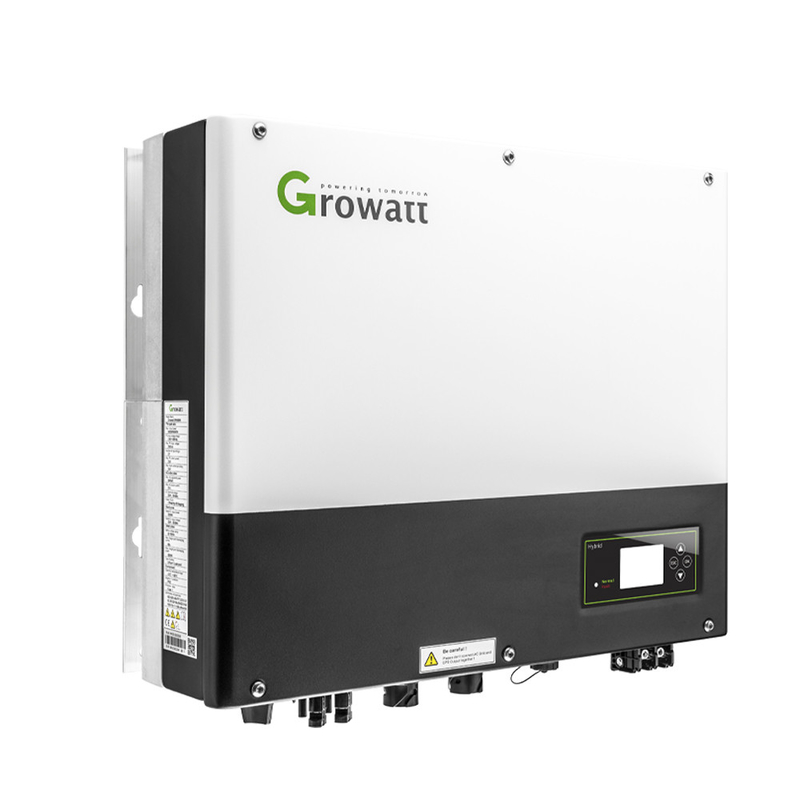

Growatt 5000w 48v Hybrid Solar Inverter for Home and Government Solar Energy Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Growatt |
| Model Number: | SPH3000~6000 |
Payment & Shipping Terms:
| Price: | $998.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | Cartons and pallets and wooden box |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| Output Power: | 3kw, 2KW, 4kw, 3.5KW, 5.5kw, 6kw, 1KW, Other | Input Voltage: | 150V |
|---|---|---|---|
| Output Voltage: | 230V | Output Current: | 16A~27A |
| Output Frequency: | 50Hz/60Hz | Output Type: | Single, DUAL, Triple, Multiple, Three Phase |
| Size: | 458*565*180(mm) | Type: | DC/DC Converters, DC/AC Inverters |
| Inverter Efficiency: | 99.99% | Certificate: | CE IEC EN AS VDE |
| Warranty: | 10 Years | Weight: | 27KG |
| Product Name: | Solar Inverter | Inverter Type: | Hybrid Grid Inverter |
| Brand: | Growwatt | Keyword: | Solar Power System Inverter |
| Application: | Home Solar System, Industrial, Commercial | Efficiency: | 99.9% Max |
| Port: | Shanghai / Ningbo /Guangzhou / Shenzhen | ||
Product Description
Datasheet | SPH 3000 | SPH 3600 | SPH 4000 | SPH 4600 | SPH 5000 | SPH 6000 | ||||||
DC input data | ||||||||||||
Max. recommended PV power | 6600W | 6600W | 6600W | 8000W | 8000W | 8000W | ||||||
Start voltage | 150V | |||||||||||
Max. PV voltage | 550V | |||||||||||
PV voltage range | 120V-550V | |||||||||||
MPPT voltage range/ nominal voltage | 150V-550V /360V | |||||||||||
Max. input current of tracker A/B | 12A/12A | |||||||||||
Number of MPP trackers / strings per MPP tracker | 2/1 | |||||||||||
AC Output | ||||||||||||
Rated AC output power | 3000W | 3680W | 4000W | 4600W | 4999W | 6000W | ||||||
Max. AC apparent power | 3000VA | 3680VA | 4000VA | 4600VA | 5000VA | 6000VA | ||||||
Max. output current | 16A | 16A | 22A | 22A | 22A | 27A | ||||||
Nominal AC output voltage | 230V | |||||||||||
Nominal grid frequency | 50/60Hz, ±5Hz | |||||||||||
Power factor at rated power | 1 | |||||||||||
Displacement power factor | 0.8leading…0.8lagging | |||||||||||
THDI | <3% | |||||||||||
AC output power(Backup) | ||||||||||||
Max. output power | 3000W | |||||||||||
Rated AC output voltage | 230Vac | |||||||||||
Rated AC output frequency | 50/60Hz | |||||||||||
Automatic switchover time | <0.5S | |||||||||||
Battery data | ||||||||||||
Battery voltage range | 42~59V | |||||||||||
Max. charging voltage | 58V | |||||||||||
Max charging and discharging current | 66A | |||||||||||
Max charging and discharging power | 3000W | |||||||||||
Battery type | Lithium /Lead-acid | |||||||||||
Capacity of battery | 50-2000AH | |||||||||||
Efficiency | ||||||||||||
Max. efficiency | 97.5% | 97.5% | 97.5% | 97.6% | 97.6% | 97.7% | ||||||
Euro European efficiency | 97.0% | 97.0% | 97.0% | 97.1% | 97.1% | 97.1% | ||||||
MPPT efficiency | 99.9% | |||||||||||
Protection devices | ||||||||||||
DC switch | Yes | |||||||||||
DC reverse polarity protection | Yes | |||||||||||
Battery reverse protection | Yes | |||||||||||
Output over current protection | Yes | |||||||||||
Output over voltage protection | Yes | |||||||||||
Ground fault monitoring | Yes | |||||||||||
Grid monitoring | Yes | |||||||||||
Integrated all-pole sensitive leakage | Yes | |||||||||||
General Data | ||||||||||||
Dimensions (W / H / D) | 458/565/180mm | |||||||||||
Weight | 27kg | |||||||||||
Operating temperature range | –25°C ... +60°C | |||||||||||
Altitude | 2000m | |||||||||||
Self-Consumption | < 3 W | |||||||||||
Topology(solar) | Transformerless | |||||||||||
Topology(battery) | HF transformer | |||||||||||
Cooling concept | Natural | |||||||||||
Environmental Protection Rating | IP65 | |||||||||||
Relative humidity | 100% | |||||||||||
DC connection | MC4/H4(Optional) | |||||||||||
AC connection | Connector | |||||||||||
Interfaces: RS232/RS485/CAN/USB | Yes | |||||||||||
Monitor : RF/WIFI/GPRS | Optional | |||||||||||
Display | LCD+LED | |||||||||||
Warranty: 5 years / 10 years | Yes /Optional | |||||||||||

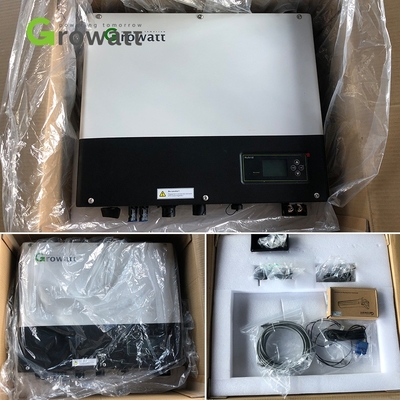

Packaging & Delivery

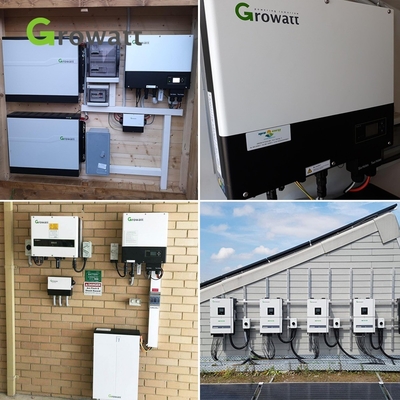

Project
