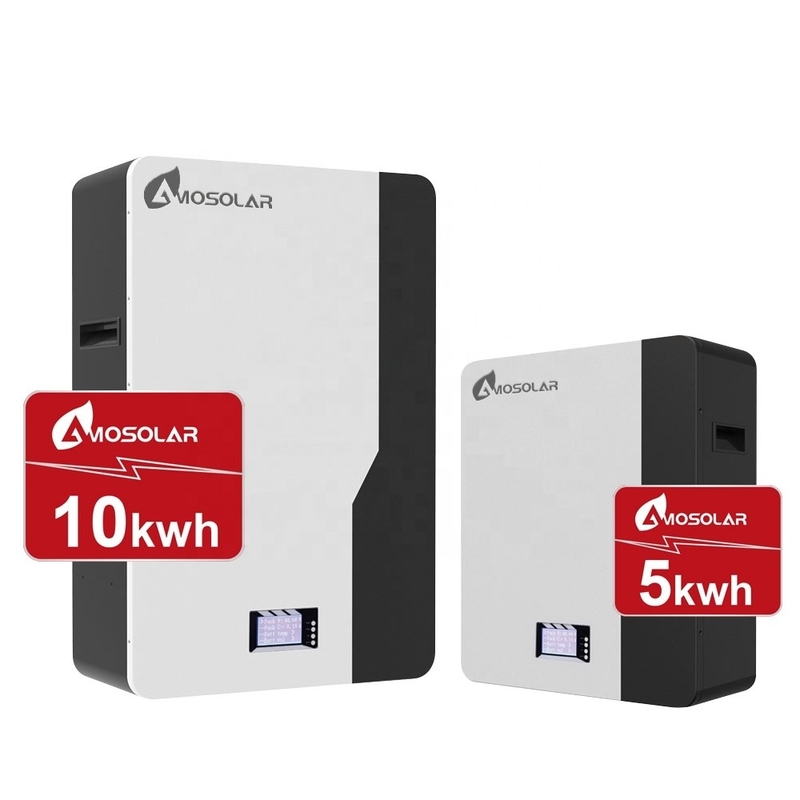

10440 Amosolar 8.7kw 36v 48v 24v 12v 50ah 60ah 72ah 120ah 150ah 500ah 100ah 200ah Gsl Lithium Batteries
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Certification: | CE/RoHS/UN38.3/MSDS |
| Model Number: | LFP-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $699.00/pieces 2-9 pieces |
|
Detail Information |
|||
| Battery Size: | 10440 | The Charging Ratio: | 99.5% |
|---|---|---|---|
| The Discharge Rate: | 99.5% | Storage Type: | LFP |
| Anode Material: | LFP | Application: | Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Home Appliances;House Use |
| Electric Energy: | 100000 Wh | Product Name: | Lithium Iron Phosphate Lifepo4 Battery |
| Capacity: | 100Ah 200Ah;5KWH 10KWH | Cycle Life: | 6000 Times |
| Voltage: | 48V/51.2V | Warranty: | 5years |
| Type: | Li-Ion/lithium/lifepo4 | Nominal Voltage: | 3.2 Volt |
| Keywords: | Battery Lithium Lifepo4 | ||
Product Description
Product Description
Specification
Model | AS16S100BL-V | AS16S200BL-V | ||
Basic Characteristics | Norminal Voltage | 51.2 V | 51.2 V | |
Norminal Capacity | 100 Ah | 200 Ah | ||
Efficiency | ≧ 96% | ≧ 96% | ||
Inner Resistance | 10 mΩ | 7 mΩ | ||
Cell Type | LiFePO4 | LiFePO4 | ||
Charging Characteristics | Charge Voltage | 58.4 V | 58.4 V | |
Standard Charging Current | 20 A | 40 A | ||
Max.Continuous Charging Current | 100 A | 100 A | ||
Discharge Characteristics | Standard Discharge Current | 20 A | 40 A | |
Continuous Discharge Current | 100 A | 100 A | ||
Peak Discharge Current | 200 A ( 3S ) | 200 A ( 3S ) | ||
Discharge Cut-off Voltage | 42 V | 42 V | ||
Environmental Requirements | Storage Temperature Range | -5 ~ 40℃ | -5 ~ 40℃ | |
Storage Humidity | 65 ± 20% HR | 65 ± 20% HR | ||
Charge Temperature Range | 0 ~ 60℃ | 0 ~ 60℃ | ||
Discharge Temperature Range | -10℃ ~ 65℃ | -10℃ ~ 65℃ | ||
Mechanical Characteristics | Size ( L*W*H ) | 445*170*510mm | 445*206*675mm | |
Package Size ( L*W*H ) | 575*520*335mm | 750*520*385mm | ||
Shell Material | SPCC | SPCC | ||
Net Weight | 47KG | 85KG | ||
Gross Weight | 68KG | 110KG | ||
Package Method | 1Pcs Per Carton | 1Pcs Per Carton | ||
Other Characteristics | Cycle Life | ≧ 6000 times | ≧ 6000 times | |
Self Discharge | 2% per month | 2% per month | ||
SOC Indication | LED Light & LCD Screen | LED Light & LCD Screen | ||
Communication Protocol | RS485 / CAN | RS485 / CAN | ||
Matching Inverter | Growatt, Goodwe, Deye, Luxpower ,SRNE etc. | |||

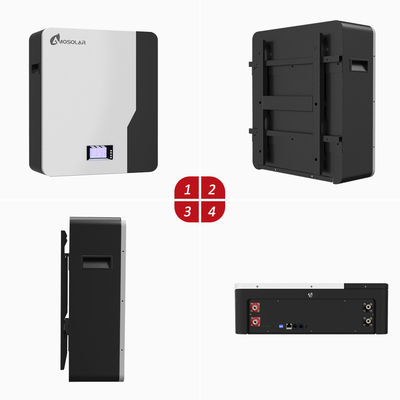

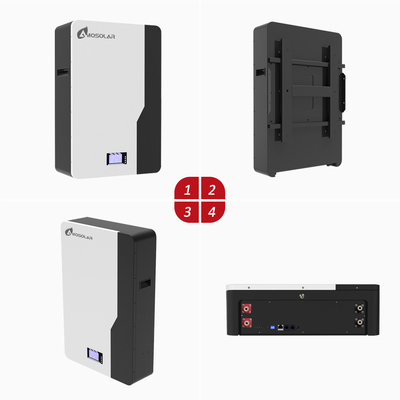

Product Paramenters
1 | While Plate | 6 | M6 Positive termainal (2 pcs) |
2 | LCD Display | 7 | Battery Indicator |
3 | Black Plate | 8 | RS 485 / CAN |
4 | Wall Mounted Bracket | 9 | M6 Negative Temainal (2 pcs) |
5 | Handle | 10 | OFF / ON |

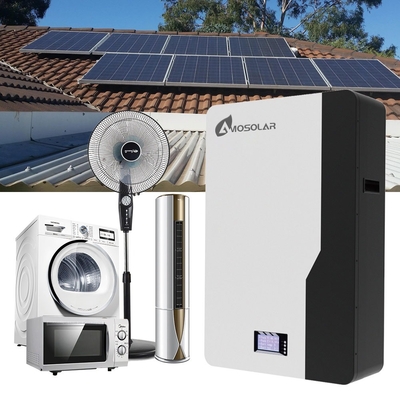

System Diagram
Training and Exhibition

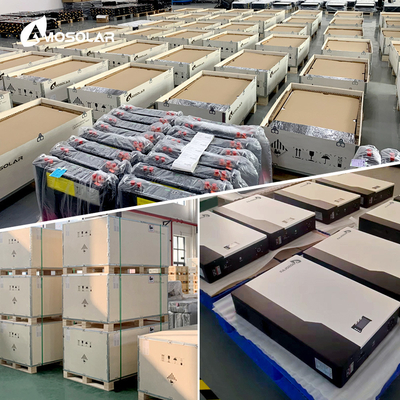

Packaging & Projects

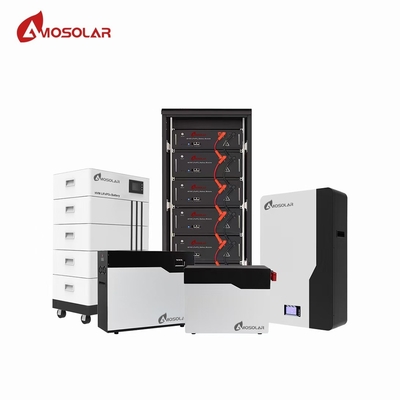

Supported Brands
FAQ
A: What are your main products?
We mainly manufacture solar panel , lead acid battery, lithium battery . And we could offer the complete solar system, solar inverter, solar air conditioning system, solar inverter, heat pump etc.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and
assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality.
F: What kind of inverters can this product match?
Off Grid and Hybrid inverter , like Deye inverter, Growatt inverter, Goodwe Inverter, Sofar Inverter etc.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and
assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality.
F: What kind of inverters can this product match?
Off Grid and Hybrid inverter , like Deye inverter, Growatt inverter, Goodwe Inverter, Sofar Inverter etc.
