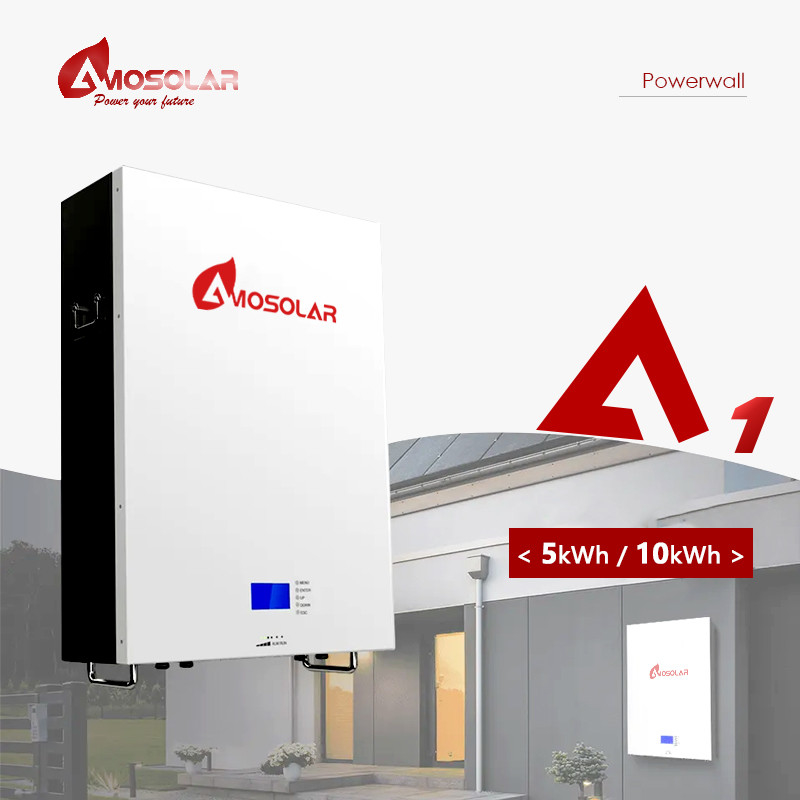

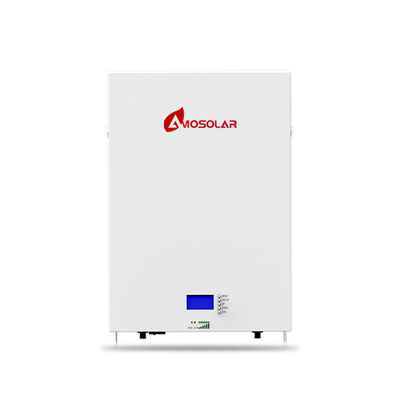

200Ah 48V Battery Pack Lifepo4 Powerwall 10Kwh 30 Kwh for Residential Energy Solution
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Certification: | CE/RoHS/UN38.3/MSDS |
| Model Number: | AS48-PW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | $699.00/pieces 5-9 pieces |
| Packaging Details: | Cartons and pallets and wooden box |
| Supply Ability: | 500000 Piece/Pieces per Month |
|
Detail Information |
|||
| Weight: | 47KG | The Charging Ratio: | 100% |
|---|---|---|---|
| The Discharge Rate: | 80% | Storage Type: | Room Temperature Storage |
| Anode Material: | LFP | Application: | Home Appliances, BOATS, Electric Power Systems, Solar Energy Storage Systems, Home Appliances;House Use |
| Product Name: | Lithium Battery | Capacity: | 100Ah 200Ah;5KWH 10KWH |
| Cycle Life: | 6000 Times | Voltage: | 48V/51.2V |
| Warranty: | 5years, 10YEARS | Type: | Li-Ion/lithium/lifepo4 |
| Nominal Voltage: | 3.2 Volt | Keywords: | Battery Lithium Lifepo4 |
| Port: | Shanghai / Ningbo /Guangzhou / Shenzhen | ||
Product Description
Product Description
Specification
Model | AS16S100BL-V | AS16S200BL-V | ||
Basic Characteristics | Norminal Voltage | 51.2 V | 51.2 V | |
Norminal Capacity | 100 Ah | 200 Ah | ||
Efficiency | ≧ 96% | ≧ 96% | ||
Inner Resistance | 10 mΩ | 7 mΩ | ||
Cell Type | LiFePO4 | LiFePO4 | ||
Charging Characteristics | Charge Voltage | 58.4 V | 58.4 V | |
Standard Charging Current | 20 A | 40 A | ||
Max.Continuous Charging Current | 100 A | 100 A | ||
Discharge Characteristics | Standard Discharge Current | 20 A | 40 A | |
Continuous Discharge Current | 100 A | 100 A | ||
Peak Discharge Current | 200 A ( 3S ) | 200 A ( 3S ) | ||
Discharge Cut-off Voltage | 42 V | 42 V | ||
Environmental Requirements | Storage Temperature Range | -5 ~ 40℃ | -5 ~ 40℃ | |
Storage Humidity | 65 ± 20% HR | 65 ± 20% HR | ||
Charge Temperature Range | 0 ~ 60℃ | 0 ~ 60℃ | ||
Discharge Temperature Range | -10℃ ~ 65℃ | -10℃ ~ 65℃ | ||
Mechanical Characteristics | Size ( L*W*H ) | 445*170*510mm | 445*206*675mm | |
Package Size ( L*W*H ) | 575*520*335mm | 750*520*385mm | ||
Shell Material | SPCC | SPCC | ||
Net Weight | 47KG | 85KG | ||
Gross Weight | 68KG | 110KG | ||
Package Method | 1Pcs Per Carton | 1Pcs Per Carton | ||
Other Characteristics | Cycle Life | ≧ 6000 times | ≧ 6000 times | |
Self Discharge | 2% per month | 2% per month | ||
SOC Indication | LED Light & LCD Screen | LED Light & LCD Screen | ||
Communication Protocol | RS485 / CAN | RS485 / CAN | ||
Matching Inverter | Growatt, Goodwe, Deye, Luxpower ,SRNE etc. | |||
Product Paramenters
System Diagram

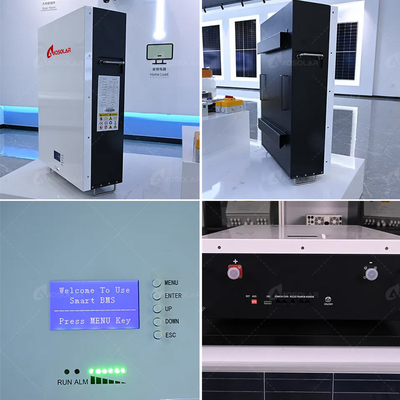

Training and Exhibition

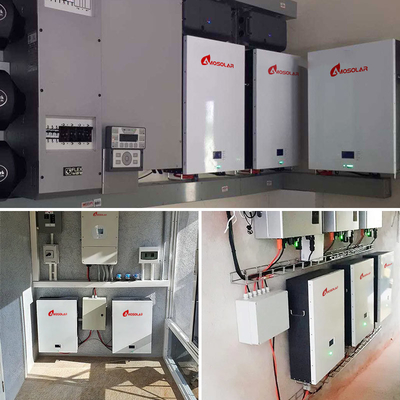

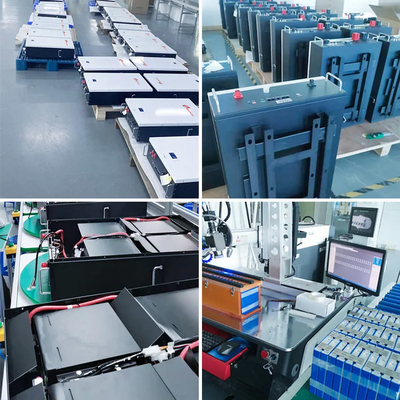

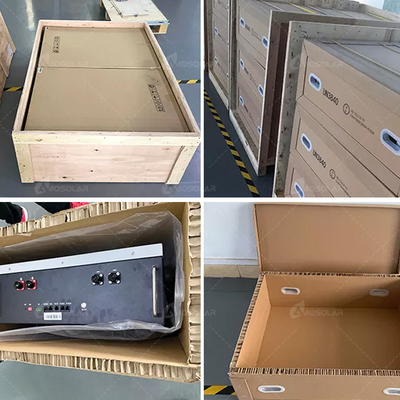

Packaging & Projects
Supported Brands
FAQ
A: What are your main products?
We mainly manufacture solar panel , lead acid battery, lithium battery . And we could offer the complete solar system, solar inverter, solar air conditioning system, solar inverter, heat pump etc.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and
assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality.
F: What kind of inverters can this product match?
Off Grid and Hybrid inverter , like Deye inverter, Growatt inverter, Goodwe Inverter, Sofar Inverter etc.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and
assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality.
F: What kind of inverters can this product match?
Off Grid and Hybrid inverter , like Deye inverter, Growatt inverter, Goodwe Inverter, Sofar Inverter etc.
Want to Know more details about this product
