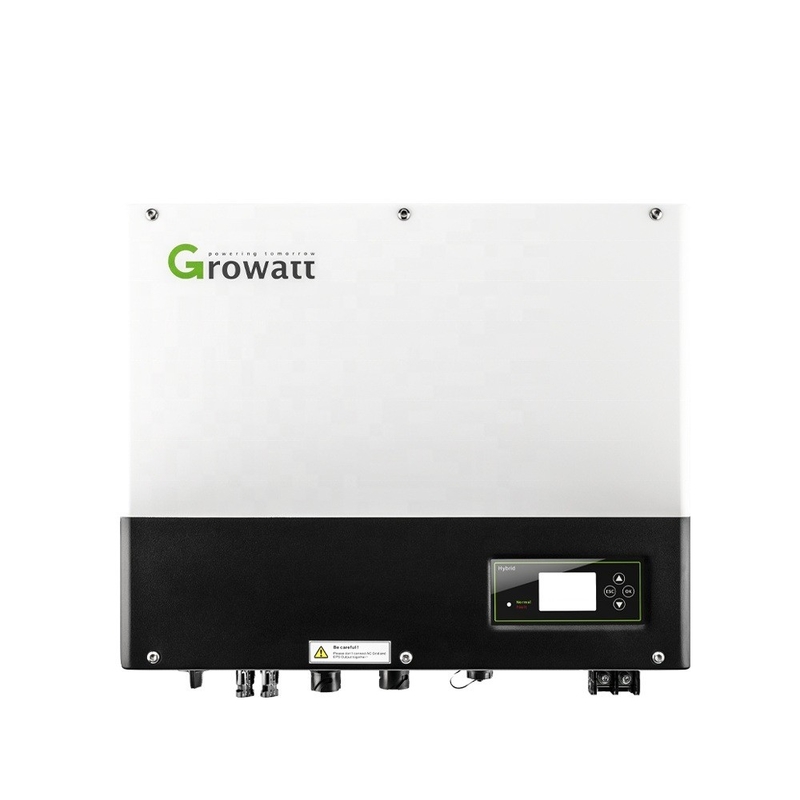

Growatt MID 25-40KTL3-X 30kW 40kW Solar Inverters Hybrid 5 Easy to Install Weight 29.5KG
Product Details:
| Place of Origin: | China |
| Brand Name: | Growatt |
| Model Number: | MID 15-50KTL3-X |
Payment & Shipping Terms:
| Price: | $1,600.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Warranty: | 12 Years | Free Installation Service: | NO |
|---|---|---|---|
| Application: | Home | Solar Panel Type: | Monocrystalline Silicon, Polycrystalline Silicon |
| Battery Type: | NONE | Controller Type: | MPPT |
| Mounting Type: | Ground Mounting | Load Power (W): | 50KW, 30kw, 20kw, 25, 40, 15, 36 |
| Output Voltage (V): | 230V/400V | Output Frequency: | 50/60Hz±5Hz |
| Work Time (h): | 24hours | Certificate: | TUV/IEC/UTE/CE |
| Pre-sales Project Design: | Y | Place Of Origin:: | Jiangsu, China |
| Model Number:: | Growatt-MID-(25k-50k)tl3-x | Output Voltage:: | 230V/400V |
| Output Frequency:: | 50/60Hz±5Hz | Size:: | 580/435/230mm |
| Inverter Efficiency:: | 98.75% | Warranty:: | 5 Years |
| Inverter Type:: | On-grid Power Inverter | Brand Name:: | Growatt |
| Weight:: | 29.5KG | ||
Product Description
Product Description
Specification
Model | MID 25KTL3-X | MID 30KTL3-X | MID 33KTL3-X | MID 36KTL3-X | MID 40KTL3-X | |||||
Input Data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 37500W | 45000W | 49500W | 54000W | 60000W | |||||
Max. DC voltage | 1100V | |||||||||
Start voltage | 250V | |||||||||
Nominal voltage | 600V | |||||||||
MPP voltage range | 200V-1000V | |||||||||
No. of MPP trackers | 3 | 3 | 3 | 4 | 4 | |||||
No. of PV strings per MPP tracker | 2 | |||||||||
Max. input current per MPPT tracker | 26A | |||||||||
Max. short circuit current per MPPT | 32A | |||||||||
Output data (AC) | ||||||||||
Rated AC output power | 25000W | 30000W | 33000W | 36000W | 40000W | |||||
Max. AC apparent power | 27700VA | 33300VA | 36600VA | 39600VA | 4000VA | |||||
Nominal AC voltage（range*) | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency（range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 40A | 50.5A | 55.5A | 60.0A | 66.6A | |||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||

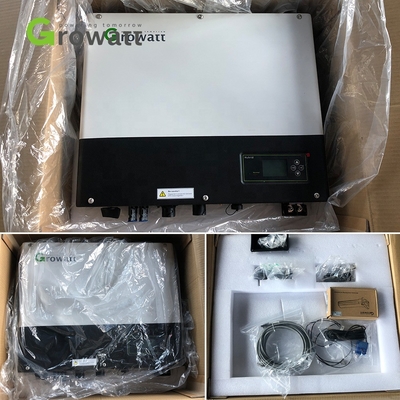

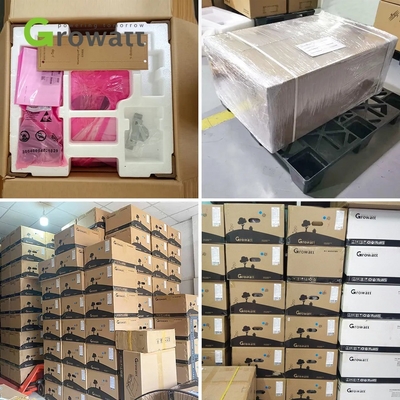

Packing & Delivery
Cartons and pallets and wooden box
Company Profile
******
FAQ
1. who are we?
We are based in Anhui, China, start from 2022,sell to Eastern Europe(20.00%),North America(18.00%),South America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),South Asia(5.00%),Domestic Market(2.00%),Mid East(1.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Battery,Solar System,Inverter Controller,Lithium battery energy storage system
4. why should you buy from us not from other suppliers?
We are a professional solar panel manufacturer,solar system product and service provider. We provides Inovative alternative energy solutions. Solar and energy storage solutions for residential & commercial applications and One-stop solutions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Anhui, China, start from 2022,sell to Eastern Europe(20.00%),North America(18.00%),South America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),South Asia(5.00%),Domestic Market(2.00%),Mid East(1.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Battery,Solar System,Inverter Controller,Lithium battery energy storage system
4. why should you buy from us not from other suppliers?
We are a professional solar panel manufacturer,solar system product and service provider. We provides Inovative alternative energy solutions. Solar and energy storage solutions for residential & commercial applications and One-stop solutions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Want to Know more details about this product
