10kwh 15kwh 20kwh Split High Voltage LFP Solar Battery for Storage System by Amosolar
Product Details:
| Place of Origin: | China |
| Brand Name: | Amosolar |
| Certification: | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
| Model Number: | AMO 10K_HV-T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | $550.00/sets 2-49 sets |
|
Detail Information |
|||
| Battery Type: | LiFePO4 | Output Power Range: | 10~20 KWh |
|---|---|---|---|
| System Type: | Stackable | Communication Port: | CAN, RS232, RS485, CAN, RS232, RS485 |
| Protection Class: | IP65 | Grid Connection: | Off Grid, Hybrid Grid |
| Installation Mode: | Stackable | Energy: | 10.24kWh-25.6kWh |
| Dimension: | 630*185*955 | IP Grade: | IP65 |
| Type: | Split | Cycle Life: | >6000 Cycles |
| Design Life: | 10+Years | OEM/ODM: | Acceptable |
Product Description
Specification

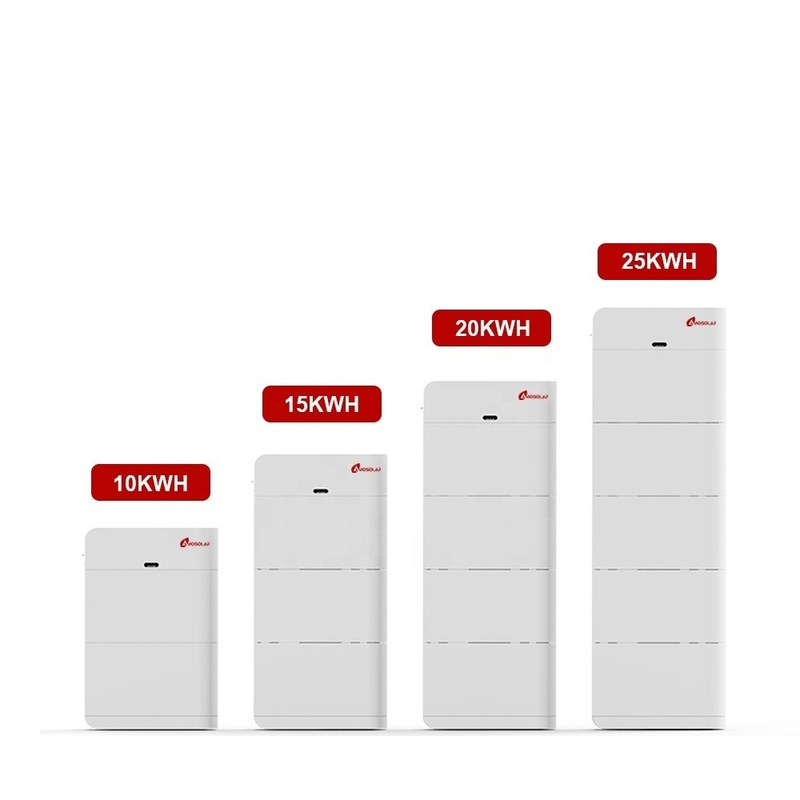

MODEL | AMO 10K_HV-T1 | AMO 15K_HV-T1 | AMO 20K_HV-T1 | AMO 25K_HV-T1 | ||||
Electrical Characteristics | ||||||||
Rate voltage(Vdc) | 204.8 | 307.2 | 409.6 | 512 | ||||
Rate capacity(AH) | 50 | 50 | 50 | 50 | ||||
Energy storage(KWH) | 10.24 | 15.36 | 20.48 | 25.6 | ||||
Cycle life | ＞6000 cycles @80% DOD, 0.5C | |||||||
Months self discharge | ≤2% | |||||||
Charge/ Discharge standard | ||||||||
Max. Charge/Discharge current(A) | 50 | |||||||
Voltage Range(VDC) | 180-228 | 270-340 | 350-450 | 440-560 | ||||
Enviornment | ||||||||
Charge temperature | 0 ℃ to 55℃ @60±25% Relative Humidity | |||||||
Discharge temperature | -20 ℃ to 55℃ @60±25% Relative Humidity | |||||||
Storage temperature | -20℃ to 55 ℃ @60±25% Relative Humidity | |||||||
Mechanical | ||||||||
IP class | IP65 | |||||||
Material system | LiFePO4 | |||||||
Case Type | Stand Stack | |||||||
Dimensions L*W*H(mm) | 630*185*955 | 630*185*1300 | 630*185*1650 | 630*185*2000 | ||||
Weight(Approx)(kg) | 120 | 170 | 220 | 268 | ||||
Communication | ||||||||
Protocol(Optional) | CANBus/RS485/RS232 | |||||||
Monitoring | Bluetooth/ WLAN Optional | |||||||
Certificates | ||||||||
Pack | UN38.3, MSDS | |||||||
Cell | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 | |||||||
About Us
COMPANY PROFILE
Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.
Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients' requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
QUALITY AS THE GENE OF PRODUCTS
Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.
RIGOROUS SYSTEM OF CONTROL
Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
* Solar Material Control * Production Control * After Production

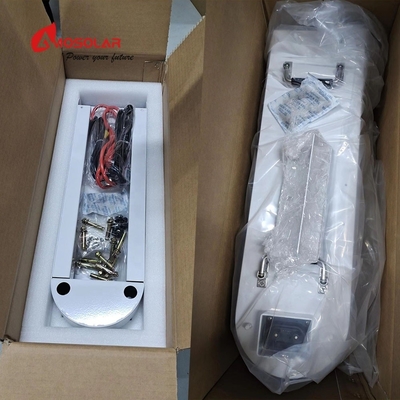

Packaging & Delivery
PACKAGING & DELIVERING
All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
FAQ
A: What are your main products?
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
If you want to know more information, you can send inquiry to our team, we will cover more details.
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.
Sample will charge cost, but the cost will be refund after bulk order.
If you want to know more information, you can send inquiry to our team, we will cover more details.
Want to Know more details about this product
