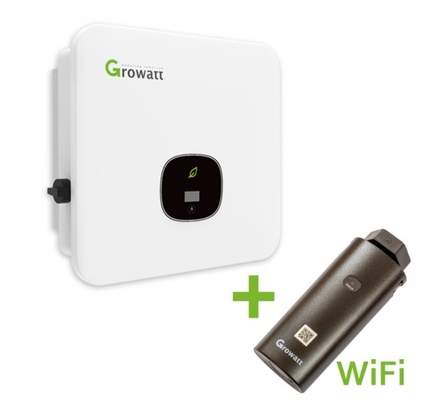

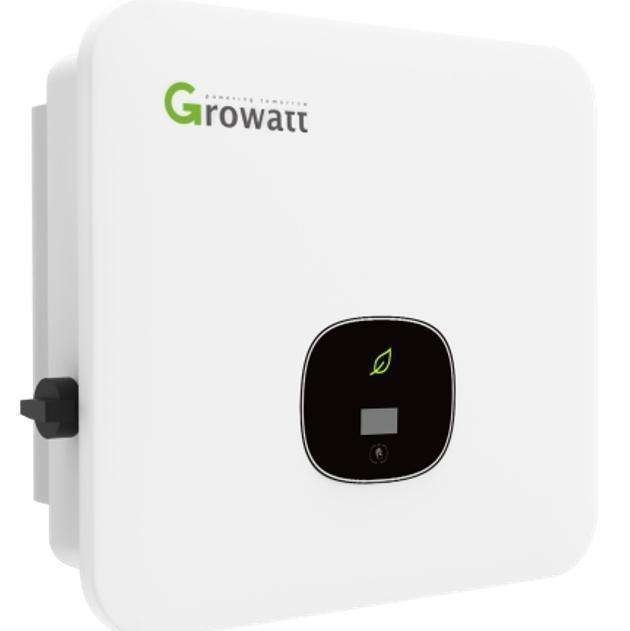

10kw 15kw 20kw 30kw Solar Inverter for On Grid System at 60Hz/50Hz Output Frequency
Product Details:
| Place of Origin: | China |
| Brand Name: | Growatt |
| Model Number: | MOD 5-15KTL3-X |
Payment & Shipping Terms:
| Price: | $683.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Warranty: | 5years | Free Installation Service: | NO |
|---|---|---|---|
| Application: | Home | Solar Panel Type: | Monocrystalline Silicon, Polycrystalline Silicon |
| Battery Type: | NONE | Controller Type: | MPPT |
| Mounting Type: | Ground Mounting | Load Power (W): | 20kw, 10KW |
| Output Voltage (V): | 220V/380V, 230V/400V | Output Frequency: | 60Hz/50Hz |
| Work Time (h): | 24 Hours | Certificate: | CE, ROHS, TUV, IEC |
| Pre-sales Project Design: | Y | Place Of Origin:: | Fujian, China |
| Model Number:: | MOD 5-15KTL3-X | Size:: | 425/387/178MM |
| Inverter Efficiency:: | 98.2% | Warranty:: | 5 Years |
| Weight:: | 17 Kg | Inverter Type:: | On-grid Inverter |
| Output Type:: | Three-phase | MPPT Range:: | 140VDC ~ 1000VDC |
| Brand Name:: | Growatt | ||
Product Description
Product Description
Specification
MOD 10~15KTL3-X | ||||||||||
Specification | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 15000W | 16500W | 18000W | 19500W | 19500W | |||||
Max DC voltage | 1100V | |||||||||
Start voltage | 200V | |||||||||
Nominal voltage | 580V | |||||||||
MPPT voltage range | 140V-1000V | |||||||||
No. of MPP trackers | 2 | |||||||||
No. of PV strings per MPP tracker | 1 | 2/1 | ||||||||
Max. input current per MPP tracker | 13A | 26/13 | ||||||||
Max. input current per MPP tracker | 16A | 32/16 | ||||||||
Output data(AC) | ||||||||||
AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W | |||||
Max. AC apparent power | 11000VA* | 12100VA | 16500VA | 16500VA | 16500VA | |||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A | |||||
Adjustable power factor | ||||||||||
THDI | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
MAX. efficiency | 98.6% | |||||||||
European efficiency | 98.1% | 98.2% | ||||||||
MPPT efficiency | 99.9% | |||||||||
Protection devices | ||||||||||
DC reverse polarity protection | Yes | |||||||||
DC Switch | Yes | |||||||||
AC/DC surge protection | Type II/Type II | |||||||||
Insulation resistance monitoring | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
Ground fault monitoring | Yes | |||||||||
Grid monitoring | Yes | |||||||||
Anti-islanding protection | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
String fault monitoring | Yes | |||||||||
AFCI protection | Optional | |||||||||
General data | ||||||||||
Dimensions (W / H / D) | 425/387/178mm | |||||||||
Weight | 14kg | 16kg | ||||||||
Operating temperature range | –25°C ... +60°C | |||||||||
Nighttime power consumption | <1W | |||||||||
Topology | Transformerless | |||||||||
Cooling | Natural convection | |||||||||
Protection degree | IP66 | |||||||||
Relative humidity | 0~100% | |||||||||
Altitude | 4000m | |||||||||
DC connection | H4 / MC4 (Optional ) | |||||||||
AC connection | Connector | |||||||||
DisplayVV | OLED+LED/WIFI+APP | |||||||||
Interfaces: USB/RS485/WIFI /GPRS//LAN/RF | yes/yes/Optional/Optional/Optional/Optional | |||||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||||

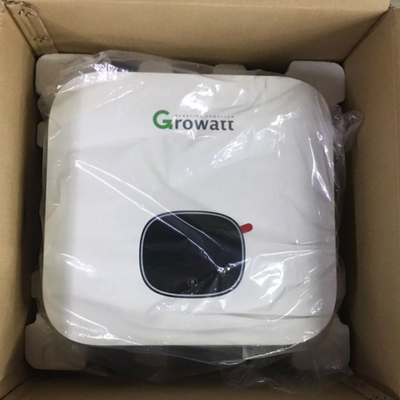

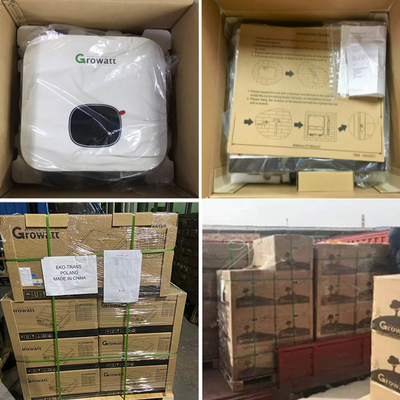

Packing & Delivery
Cartons and pallets and wooden box
Company Profile
******
FAQ
1. who are we?
We are based in Anhui, China, start from 2022,sell to Eastern Europe(20.00%),North America(18.00%),South America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),South Asia(5.00%),Domestic Market(2.00%),Mid East(1.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel,Battery,Solar System,Inverter Controller,Lithium battery energy storage system
4. why should you buy from us not from other suppliers?
We are a professional solar panel manufacturer,solar system product and service provider. We provides Inovative alternative energy solutions. Solar and energy storage solutions for residential & commercial applications and One-stop solutions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
