IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House

IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House

Product Details:

Brand Name: Amosolar
Certification: CE/RoHS/UN38.3/MSDS
Model Number: AMO5.12-15.36K-W3

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $680.00 - $1,750.00/pieces
Get Best Price Contact Now

Detail Information

Battery Type: Lithium Ion Output Power Range: 5~10 KWh
System Type: Wall-mounted Type: All-in-one, Li-Ion/lithium/lifepo4
Communication Port: CAN, RS232, RS485 Protection Class: IP65
Grid Connection: Off Grid, Hybrid Grid Product Name: Lithium Iron Phosphate Lifepo4 Battery
Application: Home Appliances;House Use Capacity: 100Ah 200Ah 300Ah;5KWH 10KWH 15KWH
Cycle Life: 6000 Times Voltage: 51.2V
Warranty: 5years Keywords: Battery Lithium Lifepo4
OEM/ODM: Accepatable

Product Description

IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 0
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 1
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 2
Specification
PERFORMANCE SPECIFICATIONS
MODEL
AMO 5.12K-W3
AMO 10.24K-W3
AMO 15.36K-W3
Nominal Voltage
51.2V
Capacity(Ah)
100AH
200AH
300AH
Rated Energy (KWH)
5.12KWH
10.24KWH
15.36KWH
Usable Energy(KWH)
4.1KWH
8.2KWH
12.29KWH
Max.Charge/Discharge Current(A)
100A
Voltage Range (Vdc)
45.6-56.16V
Communication
RS232, CAN, RS485
Cycle Life
≥6000cycles@25℃,80%DOD
Design Life
≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)
48.45kg
98kg
140.7kg
Dimension(W/D/H)(mm)
520*470*141.5mm
800*590*142mm
856*820*176mm
lnstallation Mode
Wall Mount
lPGrade
lP65
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3,MSDS
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(℃)
Charge:0°C~55℃; Discharge: -20°C-60℃
Altitude (m)
≤2000
Humidity
≤95%(Non-condensing)
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 3
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 4
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 5
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 6

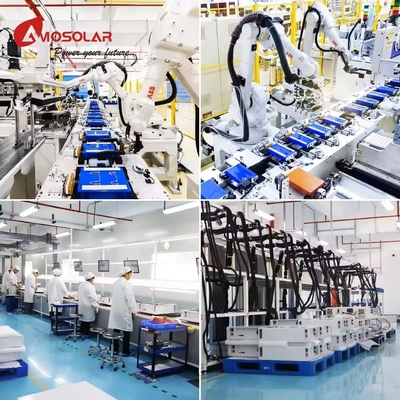

COMPANY PROFILE


Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.

Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients' requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 7
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 8

QUALITY AS THE GENE OF PRODUCTS

Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 9
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 10

RIGOROUS SYSTEM OF CONTROL

Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 11
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 12
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 13

PACKAGING & DELIVERING

All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 14
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 15
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 16
IP65 Protection Class 51.5V 100Ah 200Ah 300Ah Lifepo4 Lithium Battery Pack for House 17
