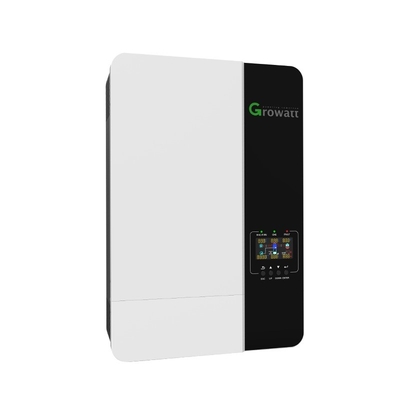

80A/100A Output Current Three Phase 48v Hybrid Solar Panel Inverter for Off Grid Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Growatt |
| Model Number: | SPF3500-5000ES |
Payment & Shipping Terms:
| Price: | $425.00/pieces 1-99 pieces |
|---|
|
Detail Information |
|||
| Input Voltage: | 220/230Vac | Output Voltage: | 230Vac |
|---|---|---|---|
| Output Current: | 80A/100A | Output Frequency: | 50Hz/ 60Hz |
| Output Type: | Triple, Three Phase | Size: | 330mm*485mm*135mm |
| Type: | DC/AC Inverters | Inverter Efficiency: | 95% |
| Certificate: | CE | Warranty: | 2 Years, 2 Years |
| Weight: | 11.5kg/12kg | Product Name: | Off-grid Solar Power Inverter |
| Keyword: | Solar Inverter 5KW | Efficiency: | 90%-95% |
| Application: | Solar Power System Home | ||

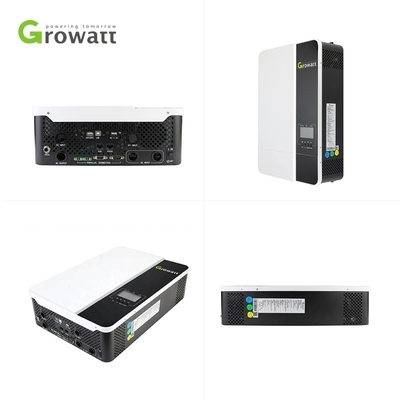

Product Description
Datasheet | SPF 3500 ES | SPF 5000 ES | ||
Battery Voltage | 48VDC | |||
Battery Type | Lithium/Lead-acid | |||
INVERTER OUTPUT | ||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | ||
Parallel Capability | Yes, 6 units maximum | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 7000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10ms typical, 20ms Max | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 4500W | 6000W | ||
MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 80A | 100A | ||
AC CHARGER | ||||
Charge Current | 60A | 80A | ||
AC Input Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Protection Degree | IP20 | |||
Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | ||
Net Weight | 11.5kgs | 12kgs | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Altitude | <2000m | |||
Operating Temperature | 0°C - 55°C | |||
Storage Temperature | -15°C - 60°C | |||
Product Description
Packaging & Delivery

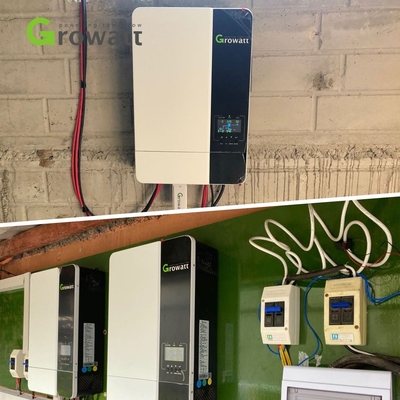

Project
Why Choose Us
Want to Know more details about this product
