The series, SUN 8K-SG, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes
self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series
product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.
 |
Deye SUN-3/3.6/5/6K-SG04LP1-EU Single Phase Hybrid Solar Inverter with LV Battery in EU
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | DEYE |
| Model Number: | SUN-8K-SG01LP1-EU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $999.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Input Voltage: | 125V-425V | Output Voltage: | 220V/230V /240V |
|---|---|---|---|
| Output Current: | 33.4A / 35A | Output Frequency: | 50/60Hz |
| Output Type: | Single, Three Phase | Size: | 420/670/233mm |
| Type: | DC/AC Inverters | Inverter Efficiency: | 99.90% |
| Certificate: | SAA/CE/TUV/VDE/CEI | Warranty: | 5 Years |
| Weight: | 32KG | ||
Product Description
Product Description
Deye Single Phase Hybrid Inverter
SUN-8K-SG01LP1-EU | 8KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-8K-SG01LP1-EU | 8KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Hybrid Inverter Block Diagram
Smart Monitoring System
Specification
Model | SUN-3.6K-SG01/03LP1-EU | SUN-5K-SG01/03LP1-EU | SUN-8K-SG01LP1-US/EU | |||||
Battery Input Data | ||||||||
Battery Type | Lead-acid or Li-lon | |||||||
Battery Voltage Range (V) | 40~60V | |||||||
Max. Charging Current (A) | 90A | 120A | 190A | |||||
Max. Discharging Current (A) | 90A | 120A | 190A | |||||
Charging Curve | 3 Stages / Equalization | |||||||
External Temperature Sensor | Optional | |||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
PV String Input Data | ||||||||
Max. DC Input Power (W) | 4680W | 6500W | 10400W | |||||
PV Input Voltage (V) | 370V (100V~500V) | |||||||
MPPT Range (V) | 125~425V | |||||||
Start-up Voltage (V) | 150V | |||||||
PV Input Current (A) | 13A+13A | 13A+13A | 22A+22A | |||||
No.of MPPT Trackers | 2 | |||||||
No.of MPPT Trackers | 1+1 | 1+1 | 2+2 | |||||
AC Output Data | ||||||||
Rated AC Output and UPS Power (W) | 3600W | 5000W | 8000W | |||||
Max. AC Output Power (W) | 3960W | 5500W | 8800W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||
AC Output Rated Current (A) | 15.7A | 21.7A | 33.4A / 35A | |||||
Max. AC Current (A) | 18A | 25A | 36.7A / 38.5A | |||||
Max. Continuous AC Passthrough (A) | 35A/35A/50A | |||||||
Output Frequency and Voltage | 50 / 60Hz; 120 / 240Vac (split phase), 208Vac (2 / 3 phase), 230Vac (1phase) | |||||||
Grid Type | Split phase; 2 / 3 phase; Single Phase | |||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||
Efficiency | ||||||||
Max. Efficiency | 97.60% | |||||||
Euro Efficiency | 97.00% | |||||||
MPPT Efficiency | 99.90% | |||||||
Protection | ||||||||
PV Input Lightning Protection | Integrated | |||||||
Anti-islanding Protection | Integrated | |||||||
PV String Input Reverse Polarity Protection | Integrated | |||||||
Insulation Resistor Detection | Integrated | |||||||
Residual Current Monitoring Unit | Integrated | |||||||
Output Over Current Protection | Integrated | |||||||
Output Shorted Protection | Integrated | |||||||
Output Over Voltage Protection | Integrated | |||||||
Surge protection | DC Type II / AC Type II | |||||||
Certififications and Standards | ||||||||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||||
General Data | ||||||||
Operating Temperature Range (℃ ) | -25~60℃ , >45℃ Derating | |||||||
Cooling | Smart cooling | |||||||
Noise (dB) | <30 dB | |||||||
Communication with BMS | Communication with BMS | |||||||
Weight (kg) | 20.5/32 | |||||||
Size (mm) | 330W×580H×232D/420W×670H×233D | |||||||
Protection Degree | IP65 | |||||||
Installation Style | Wall-mounted | |||||||
Warranty | 5 years | |||||||
*Colorful touch LCD, IP65 protection degree*6 time periods for battery charging/discharging
*Max. charging/discharging current of 190A
*Frequency droop control, Max.16pcs parallel
*DC couple and AC couple to retrofit existing solar system
*Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
*Max. charging/discharging current of 190A
*Frequency droop control, Max.16pcs parallel
*DC couple and AC couple to retrofit existing solar system
*Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
*Support storing energy from diesel generator*Max. battery charge efficiency of 95.4%
*Unique Smart Load application and Grid peak shaving function
*4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
*Unique Smart Load application and Grid peak shaving function
*4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

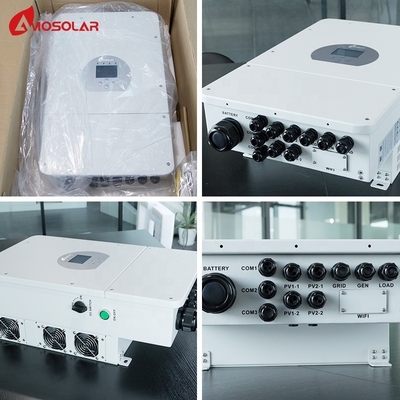

Size & Details

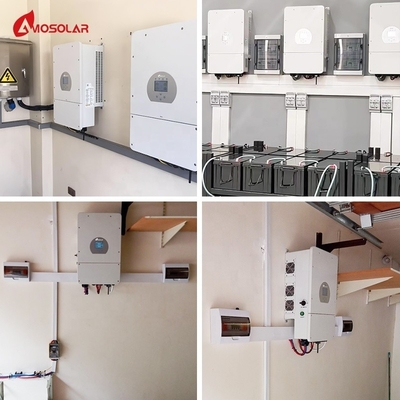

Project
