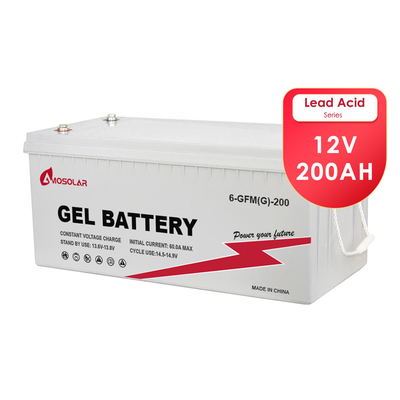

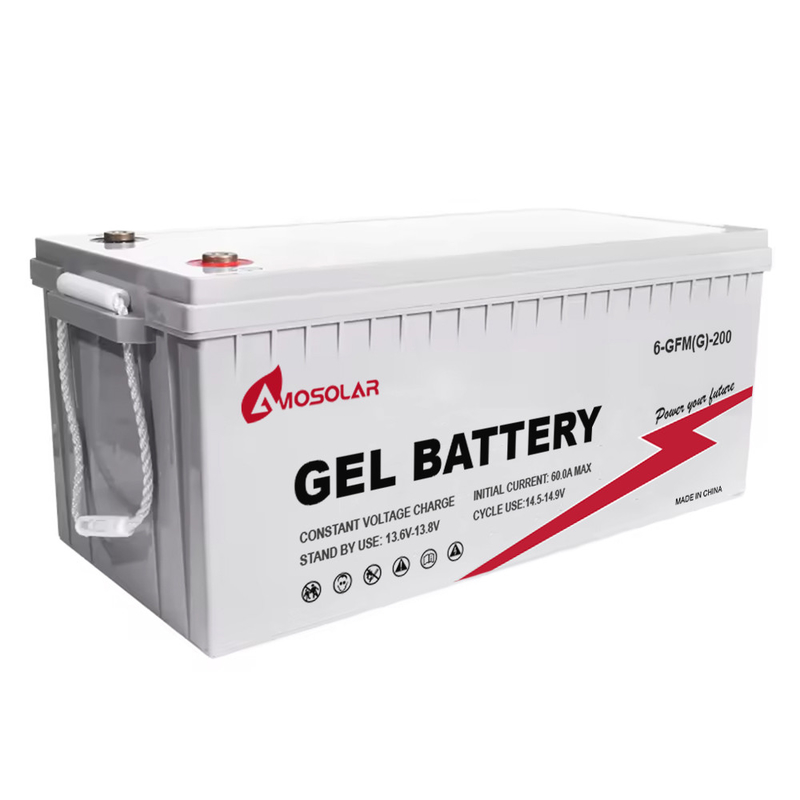

Amosolar Deep Cycle Gel Battery 12V 100Ah 200Ah 250Ah Solar Battery For Solar System Project
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Amosolar |
| Model Number: | 12v100ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $98.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Warranty: | 3years, 3 Years | Chargeable: | Yes |
|---|---|---|---|
| Application: | Power Tools, Home Appliances, Consumer Electronics, Golf Carts, BOATS, SUBMARINES, Automotive, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Car, Elec | Battery Type: | Deep Cycle: Sealed Gel, Lead-Acid |
| Cycle Life: | 3000 | Storage Type: | Room Temperature Storage |
| The Charging Ratio: | 1c | The Discharge Rate: | 1c |
| Electric Energy: | 2000 Wh | Product Name: | Lead-acid Maintenance-free Battery |
| Capacity: | 12V100AH | OEM/ODM: | Yes(Accepted) |
| Cycle Life: | 1500times | Voltage: | 12V/24V/36V/48V |
| Type: | GEL Lead Acid Battery | Size: | 330*173*212mm |
Product Description
Model | 6-GFM(G)-100Ah | 6-GFM(G)-150Ah | 6-GFM(G)-200Ah | 6-GFM(G)-250Ah | |||
Cells Per Unit | 6 | ||||||
Voltage Per Unit | 12V | ||||||
Capacity | 100Ah@10hr-rate to 1.80V per cell @25°C | 150Ah@10hr-rate to 1.80V per cell @25°C | 200Ah@10hr-rate to 1.80V per cell @25°C | 250Ah@10hr-rate to 1.80V per cell @25°C | |||
Weight | 29kg | 42kg | 58.5kg | 67kg | |||
Internal Resistance | Approx. 6mΩ | Approx. 4mΩ | Approx. 3.5mΩ | Approx. 2.5mΩ | |||
Terminal | F1/F2 | ||||||
Max. Discharge Current | 1500A(5s) | 2250A(5s) | 3000A(5s) | 3750A(5s) | |||
Design Life | 10~15 years | ||||||
Maximum Charging Current | 25A | 37.5A | 50A | 62.5A | |||
Float Charging Voltage | 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell | ||||||
Cycle Use Voltage | 14.4 V~14.9 V @ 25°C Cycle Use Voltage Temperature Compensation: -30mV/°C/Cell | ||||||
Operating Temperature Range | Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional. | ||||||
Normal Operating Temperature Range | 25°C±5°C | ||||||
Self Discharge | Less than 3% at 25°C per month | ||||||
Container Material | A.B.S. UL94-HB, UL94-V0 Optional | ||||||
Mechanical Data
Certifications
Application
OEM Service
Packaging & Delivery
About Us
COMPANY PROFILE
Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.
Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients' requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
QUALITY AS THE GENE OF PRODUCTS
Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.

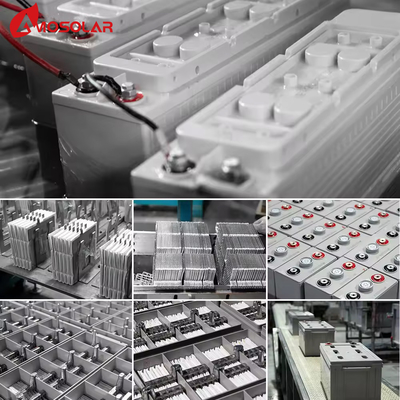

RIGOROUS SYSTEM OF CONTROL
Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
* Solar Material Control * Production Control * After Production

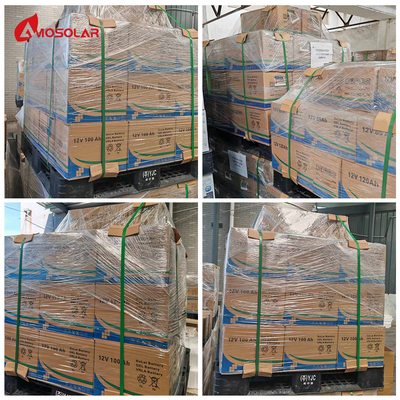

PACKAGING & DELIVERING
All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
Want to Know more details about this product
